# Dammed Rivers: Genetic Signatures of Altered Flow Regimes in a River Breeding Frog (*Rana boylii*)

.pull-left[

## Ryan Peek
### PhD Candidate, Ecology
### *2017/10/25 09:45am*

![](images/CWS_logo_small.png)
]

---
background-image: url(images/frogcatcher_connor.png)
background-size: 450px
background-position: 100% 15%
class: left, inverse

## Acknowledgements

.pull-left[

- ### Mike Miller & Sean O'Rourke

- ### Center for Watershed Sciences

- ### Brad Shaffer

- ### Amy Lind

- ### Corey Luna, many field helpers, SYRCL, Sierra Streams Institute

]

---
background-image: url(images/041912_Panorama_NYUBA.jpg)
background-size: 900px
class: inverse, center, top

# California Rivers

*N. American freshwater species projected extinction rate is 5x higher than terrestrial animals (Ricciardi and Rasmussen, 1999)*

---
background-image: url(images/hydraulicMining.png)
background-size: cover
class: goldslide

# CA Anthropogenic Legacy: Mining

### Permanently changed the geomorphology/ecology of CA watersheds

### Estimated **8x** more material excavated from Yuba/Bear/American Watersheds than during construction of entire Panama Canal

---
background-image: url(images/dams_in_west.png)
background-size: 500px
background-position: 100%
class: left

# CA Dammed Rivers

.pull-left[

- **Over 1,400 large dams (NID 2007)**

- **Residential energy demands expected to increase by 24% by 2035 (US EIA 2010)**

]

---
class: inverse, left, top

# Foothill yellow-legged frogs (*Rana boylii*)

.pull-left[

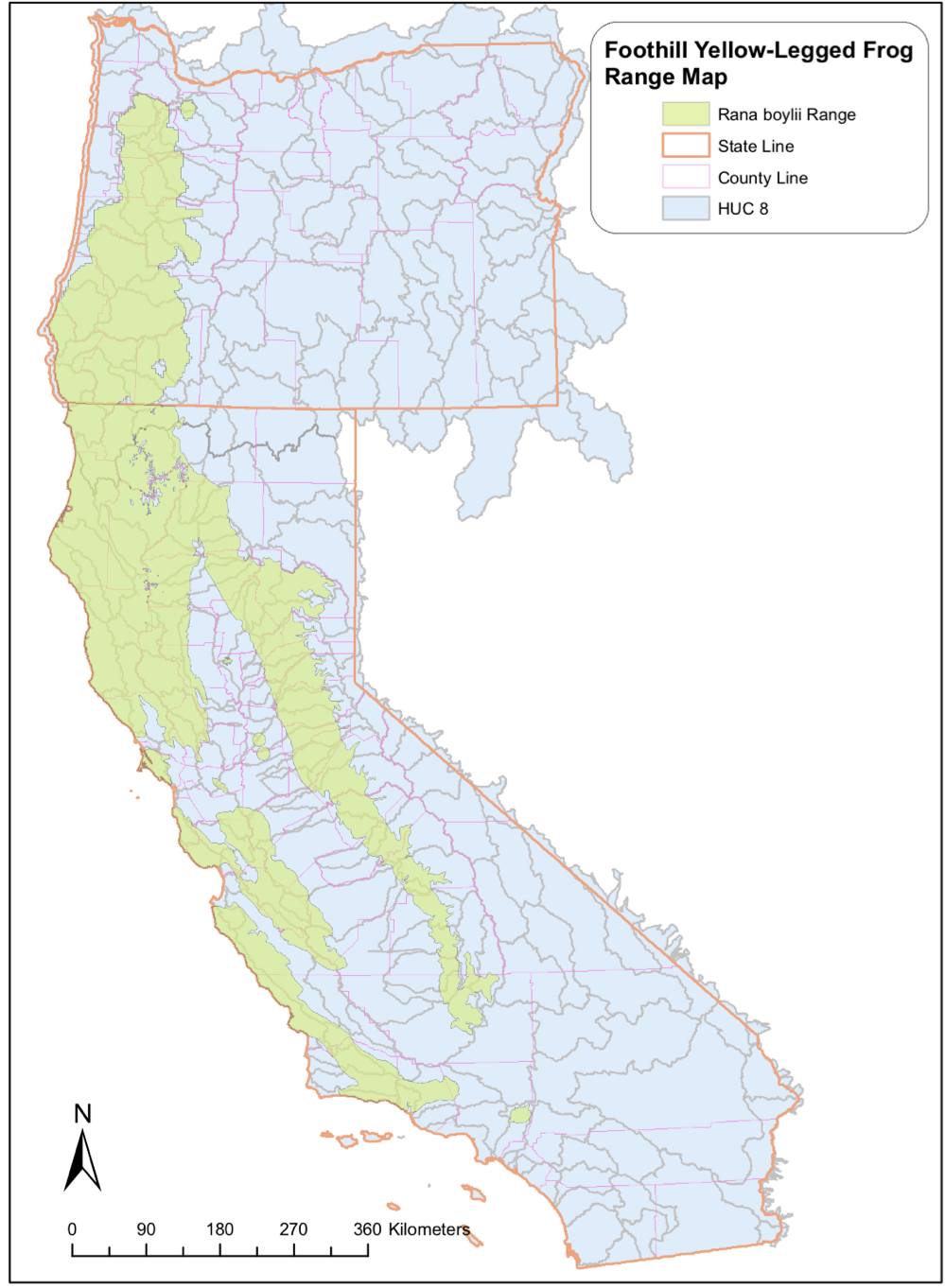

- ### Obligate river breeding frog, uses wide range of habitat, but has disappeared from over 50% of historical range

- ### Being evaluated as candidate for state and federal listing under ESA

]

.pull-right[

![](images/rabo_range_poly.png)

]

---
background-image: url(https://ryanpeek.github.io/img/indian_ck.JPG)
background-size: cover
class: center, bottom, inverse

# *BUT:* Frogs Are Still Here!
### Indian Creek, NF American watershed

---
background-image: url(images/nfa_bar.png)
background-size: cover
class: center, bottom, inverse

# *And Here:*
### Mainstem River, NF American watershed

---
background-image: url(images/slate_ck_aerial_v2.png)
background-size: 400px
class: top, left, inverse

### *But barely holding on here: (Slate Ck: North Yuba)*

---
background-image: url(images/P1070476.JPG)
background-size: cover
class: top, inverse

# Frogs As Hydrologic Indicators

.pull-right[
- ### *R. boylii* strongly linked with local hydrology, and thus the watershed history
]
--
.pull-right[
- ### Spawning timing & habitat selection is tied to receding flow cues & increasing water temperatures
]

---
background-image: url(images/rabo_A_P1060730.jpg)
background-size: 350px
background-position: 90% 5%
class: left, middle, inverse

# Case Study

### Has river (flow) regulation caused genetic fragmentation in *R. boylii*?

### Can we quantify this genetic signature with specific hydrologic metrics of flow impairment?

### Use genome-wide methods (RADSeq/RAPTURE)1

.footnote[
*[1] Ali et al. 2016*
]

---
background-image: url(images/fig1_Study_Sites_overview_jun2017.png)
background-size: 550px
background-position: 97%
class: left, top, inverse

## Study Area

---
background-image: url(images/overview_AMER_150.png)
background-size: cover
background-position: 50% 75%
class: left, top

### Study Area: American Watershed

---
background-image: url(images/NFA_log_flow_facet_zoom.png)
background-size: cover
class: center, bottom

### Hydrographs: Unimpaired

---
background-image: url(images/NFA_log_flow_facet_zoom.png)
background-size: cover
class: center, bottom

.pull-right[
<img src="images/eggs_closeup.png" height="100" width="120">
]

### Hydrographs: Unimpaired

---
background-image: url(images/MFA_log_flow_facet_zoom.png)
background-size: cover
class: center, bottom

### Hydrographs: Impaired (Hydropeaking)

---
background-image: url(images/MFA_log_flow_facet_zoom.png)
background-size: cover
class: center, bottom

.pull-right[
<img src="images/desiccated_tads_crop.png" height="100" width="120">
]

### Hydrographs: Impaired (Hydropeaking)

---
class: inverse, center, middle

# RESULTS

---

### PCA: Assessing Population Structure

N. Sierra Nevada samples *mostly* show structure by watershed (n=7,548 SNPs)

<div id="16b32e4536c4" style="width:792px;height:504px;" class="plotly html-widget"></div>
<script type="application/json" data-for="16b32e4536c4">{"x":{"data":[{"x":[-0.0272722977855063,-0.0128609967734273,-0.0228574780890888,-0.0234580390541543,-0.0253240057268082,-0.0119848394339524,-0.0139789797912962,-0.00952725243823248,-0.0100925644755473,-0.0252575299640738,-0.0137719826749358,-0.0169665303666242,-0.0107968171102917,-0.0261290092968459,-0.0102606781964201,-0.0224762051363038,-0.0134354801501444,-0.0129886727547155,-0.0182014643804264,-0.0127540702485885,-0.0263333055370455,-0.0288036424587731,-0.0195480545058561,-0.0245707509333622,-0.0209594360936831,-0.0127843444019731,-0.0212144845117971,-0.0134939470807773,-0.0225383894702839,-0.0182608778371989,-0.0107394378549685,-0.0174025797469861,-0.021679410515792],"y":[0.0221442298562617,0.0347558844377396,0.0331936857960671,0.0369200054491026,0.0254528170205972,0.027844902057524,0.0316317479165116,0.0210898182811624,0.0285341369828017,0.026294459590606,0.0160307655329938,0.0215574726903331,0.0175028080164927,0.0122761816836846,0.0259742136262409,0.0049229382431261,0.0166182532503441,0.0213681712298631,0.0193886624354223,0.0327947633687857,0.0301747954439913,0.0277358881375713,0.0438951524077418,0.014645724813077,0.0266033821446858,0.0173403926973278,0.0236080238712677,0.0304876339901518,0.0134486302257881,0.0181412536682912,0.0314703742498955,0.020553203073413,0.0217441303420249],"text":["PC1: -2.727230e-02 PC2: 0.0221442299 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP744","PC1: -1.286100e-02 PC2: 0.0347558844 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP760","PC1: -2.285748e-02 PC2: 0.0331936858 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP758","PC1: -2.345804e-02 PC2: 0.0369200054 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP756","PC1: -2.532401e-02 PC2: 0.0254528170 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP759","PC1: -1.198484e-02 PC2: 0.0278449021 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP754","PC1: -1.397898e-02 PC2: 0.0316317479 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP697","PC1: -9.527252e-03 PC2: 0.0210898183 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP696","PC1: -1.009256e-02 PC2: 0.0285341370 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP700","PC1: -2.525753e-02 PC2: 0.0262944596 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP695","PC1: -1.377198e-02 PC2: 0.0160307655 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP704","PC1: -1.696653e-02 PC2: 0.0215574727 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP703","PC1: -1.079682e-02 PC2: 0.0175028080 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP686","PC1: -2.612901e-02 PC2: 0.0122761817 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP683","PC1: -1.026068e-02 PC2: 0.0259742136 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP682","PC1: -2.247621e-02 PC2: 0.0049229382 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP755","PC1: -1.343548e-02 PC2: 0.0166182533 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP688","PC1: -1.298867e-02 PC2: 0.0213681712 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP685","PC1: -1.820146e-02 PC2: 0.0193886624 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP699","PC1: -1.275407e-02 PC2: 0.0327947634 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP690","PC1: -2.633331e-02 PC2: 0.0301747954 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP702","PC1: -2.880364e-02 PC2: 0.0277358881 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP751","PC1: -1.954805e-02 PC2: 0.0438951524 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP691","PC1: -2.457075e-02 PC2: 0.0146457248 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP753","PC1: -2.095944e-02 PC2: 0.0266033821 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP735","PC1: -1.278434e-02 PC2: 0.0173403927 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP694","PC1: -2.121448e-02 PC2: 0.0236080239 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP738","PC1: -1.349395e-02 PC2: 0.0304876340 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP689","PC1: -2.253839e-02 PC2: 0.0134486302 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP701","PC1: -1.826088e-02 PC2: 0.0181412537 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP736","PC1: -1.073944e-02 PC2: 0.0314703742 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP687","PC1: -1.740258e-02 PC2: 0.0205532031 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP693","PC1: -2.167941e-02 PC2: 0.0217441303 reg: REG River: BEA paste(River, \"-\", ID): BEA - RAP692"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(68,1,84,1)","opacity":0.8,"size":11.3385826771654,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(68,1,84,1)"}},"hoveron":"points","name":"(BEA,REG)","legendgroup":"(BEA,REG)","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0832019742686594,0.0903322419677904,0.0919827579658747,0.0864770382455478,0.0905794715938101,0.0895518601271275,0.087703918539399,0.0804036548664333,0.0849325325934138,0.0911728113071264,0.0875142615597069,0.0866834012066149,0.0841333602406916,0.0878638375803141,0.0751299148828643,0.0783708079590185,0.0633760044244612,0.0760498907022244,0.0872433659546014,0.0892460314392686,0.059881731184594,0.0603452468193065,0.101145942928145,0.081339594700377,0.0638609045111076,0.0615551524978537,0.0841731495696422,0.0848913765762328,0.0670284537359367,0.0612894365333059,0.0637050561514275,0.06449410575525,0.0859164123140979,0.0413799056420311,0.0873473521348481,0.0882577171930869,0.0764454667798767,0.0849191014907095,0.0779434631521862,0.0772295907473313,0.0792366680506112,0.0823597867867579,0.0727699783430991,0.0811320907393216,0.0831517668158087,0.0898418476897027,0.0821068106737337,0.0812605772757473,0.0852348305275236,0.0831291937647316,0.0820652757543874,0.07239284923652,0.0903218405438129,0.079828938123274,0.0840589339202692,0.0780524196601952,0.0776088700865658,0.0763161529672388],"y":[0.0351396894790191,0.0380787930260046,0.0355783459822363,0.0381876958387631,0.0191926320122931,0.0296588182758464,0.0323807404559797,0.0243431349710947,0.0236037801337327,0.0223427337149134,0.0384279274946464,0.0359110626913774,0.0302791320977034,0.0367480690901925,-0.0954202502622864,-0.100907915307646,-0.105917625262422,0.0356573854654773,0.0155267235293715,-0.140707413746429,-0.0836380844491483,-0.0899539350566909,-0.152135941723671,0.0237194911233595,-0.0702459739999883,-0.0908607502636226,0.0124990469386042,0.0303642938422051,-0.10488117515343,-0.0894481498899896,-0.111872428486902,-0.0967373384687526,-0.105850781083084,-0.0619171745812217,0.0171189863004021,-0.138590671184591,-0.100127875331746,-0.111597856988544,-0.109569505763982,-0.101658796063016,-0.0960318933700532,0.0249197307440629,0.0396269890867744,0.0209423011597289,0.0164045071812043,0.0220963680068717,0.0228583819037628,0.023276193890251,0.0238439857605374,0.0245367352053583,0.0272981615647432,0.0131978799453638,0.0271915903349006,0.0180709773828421,0.0357216392373191,0.0298606108757669,0.0248135753311035,0.0378782686517118],"text":["PC1: 8.320197e-02 PC2: 0.0351396895 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP724","PC1: 9.033224e-02 PC2: 0.0380787930 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP728","PC1: 9.198276e-02 PC2: 0.0355783460 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP734","PC1: 8.647704e-02 PC2: 0.0381876958 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP732","PC1: 9.057947e-02 PC2: 0.0191926320 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP706","PC1: 8.955186e-02 PC2: 0.0296588183 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP707","PC1: 8.770392e-02 PC2: 0.0323807405 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP727","PC1: 8.040365e-02 PC2: 0.0243431350 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP733","PC1: 8.493253e-02 PC2: 0.0236037801 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP708","PC1: 9.117281e-02 PC2: 0.0223427337 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP725","PC1: 8.751426e-02 PC2: 0.0384279275 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP726","PC1: 8.668340e-02 PC2: 0.0359110627 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP730","PC1: 8.413336e-02 PC2: 0.0302791321 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP729","PC1: 8.786384e-02 PC2: 0.0367480691 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP731","PC1: 7.512991e-02 PC2: -0.0954202503 reg: REG River: MFA paste(River, \"-\", ID): MFA - AAA822","PC1: 7.837081e-02 PC2: -0.1009079153 reg: REG River: MFA paste(River, \"-\", ID): MFA - AAA823","PC1: 6.337600e-02 PC2: -0.1059176253 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP796","PC1: 7.604989e-02 PC2: 0.0356573855 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP718","PC1: 8.724337e-02 PC2: 0.0155267235 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP717","PC1: 8.924603e-02 PC2: -0.1407074137 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP631","PC1: 5.988173e-02 PC2: -0.0836380844 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP793","PC1: 6.034525e-02 PC2: -0.0899539351 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP782","PC1: 1.011459e-01 PC2: -0.1521359417 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP635","PC1: 8.133959e-02 PC2: 0.0237194911 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP710","PC1: 6.386090e-02 PC2: -0.0702459740 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP622","PC1: 6.155515e-02 PC2: -0.0908607503 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP792","PC1: 8.417315e-02 PC2: 0.0124990469 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP721","PC1: 8.489138e-02 PC2: 0.0303642938 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP712","PC1: 6.702845e-02 PC2: -0.1048811752 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP619","PC1: 6.128944e-02 PC2: -0.0894481499 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP624","PC1: 6.370506e-02 PC2: -0.1118724285 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP791","PC1: 6.449411e-02 PC2: -0.0967373385 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP795","PC1: 8.591641e-02 PC2: -0.1058507811 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP790","PC1: 4.137991e-02 PC2: -0.0619171746 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP794","PC1: 8.734735e-02 PC2: 0.0171189863 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP720","PC1: 8.825772e-02 PC2: -0.1385906712 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP634","PC1: 7.644547e-02 PC2: -0.1001278753 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP788","PC1: 8.491910e-02 PC2: -0.1115978570 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP787","PC1: 7.794346e-02 PC2: -0.1095695058 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP786","PC1: 7.722959e-02 PC2: -0.1016587961 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP785","PC1: 7.923667e-02 PC2: -0.0960318934 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP789","PC1: 8.235979e-02 PC2: 0.0249197307 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP722","PC1: 7.276998e-02 PC2: 0.0396269891 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP715","PC1: 8.113209e-02 PC2: 0.0209423012 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP716","PC1: 8.315177e-02 PC2: 0.0164045072 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP711","PC1: 8.984185e-02 PC2: 0.0220963680 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP723","PC1: 8.210681e-02 PC2: 0.0228583819 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP719","PC1: 8.126058e-02 PC2: 0.0232761939 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP709","PC1: 8.523483e-02 PC2: 0.0238439858 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP714","PC1: 8.312919e-02 PC2: 0.0245367352 reg: REG River: MFA paste(River, \"-\", ID): MFA - RAP713","PC1: 8.206528e-02 PC2: 0.0272981616 reg: REG River: MFA paste(River, \"-\", ID): MFA - AAA831","PC1: 7.239285e-02 PC2: 0.0131978799 reg: REG River: MFA paste(River, \"-\", ID): MFA - AAA811","PC1: 9.032184e-02 PC2: 0.0271915903 reg: REG River: MFA paste(River, \"-\", ID): MFA - AAA833","PC1: 7.982894e-02 PC2: 0.0180709774 reg: REG River: MFA paste(River, \"-\", ID): MFA - AAA813","PC1: 8.405893e-02 PC2: 0.0357216392 reg: REG River: MFA paste(River, \"-\", ID): MFA - AAA812","PC1: 7.805242e-02 PC2: 0.0298606109 reg: REG River: MFA paste(River, \"-\", ID): MFA - AAA834","PC1: 7.760887e-02 PC2: 0.0248135753 reg: REG River: MFA paste(River, \"-\", ID): MFA - AAA832","PC1: 7.631615e-02 PC2: 0.0378782687 reg: REG River: MFA paste(River, \"-\", ID): MFA - AAA809"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(70,51,126,1)","opacity":0.8,"size":11.3385826771654,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(70,51,126,1)"}},"hoveron":"points","name":"(MFA,REG)","legendgroup":"(MFA,REG)","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[-0.0811942472284631,-0.0863787439808315,-0.090398815433082,-0.0769100602632979,-0.0740432834631874,-0.0839938266155482,-0.0826927339837719,-0.0822719626301988,-0.0803048004617239,-0.0735105282872961,-0.0767490917273144,-0.0806186976315616,-0.0727858848115508,-0.0733125753224625,-0.0786224107221438,-0.0748648523048272,-0.0790588493293206,-0.0926737457766769,-0.0915949536353918,-0.0884480928274844,-0.0766879106847708,-0.089619963859057,-0.0902214368712499,-0.0820767297449379,-0.0985115040390144],"y":[-0.0462446492069031,-0.0278133563701364,-0.049611322322114,-0.0349300574065753,-0.032528708871172,-0.0468406334429404,-0.041179310534199,-0.0472566844945838,-0.0255035821192325,-0.0252086458609612,-0.0233509913234634,-0.0386594063088784,-0.0291124216936568,-0.0275956270337087,-0.0505626715433089,-0.0427582346072317,-0.0288340254903596,-0.0373611889524406,-0.0450614808749305,-0.0492756187640065,-0.0499591578999655,-0.0390617100488828,-0.0463276365722448,-0.0305721910746596,-0.0344355911694482],"text":["PC1: -8.119425e-02 PC2: -0.0462446492 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP-149","PC1: -8.637874e-02 PC2: -0.0278133564 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP-184","PC1: -9.039882e-02 PC2: -0.0496113223 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP-183","PC1: -7.691006e-02 PC2: -0.0349300574 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP-247","PC1: -7.404328e-02 PC2: -0.0325287089 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP-202","PC1: -8.399383e-02 PC2: -0.0468406334 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP836","PC1: -8.269273e-02 PC2: -0.0411793105 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP838","PC1: -8.227196e-02 PC2: -0.0472566845 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP837","PC1: -8.030480e-02 PC2: -0.0255035821 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP830","PC1: -7.351053e-02 PC2: -0.0252086459 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP832","PC1: -7.674909e-02 PC2: -0.0233509913 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP831","PC1: -8.061870e-02 PC2: -0.0386594063 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP829","PC1: -7.278588e-02 PC2: -0.0291124217 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP841","PC1: -7.331258e-02 PC2: -0.0275956270 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP833","PC1: -7.862241e-02 PC2: -0.0505626715 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP835","PC1: -7.486485e-02 PC2: -0.0427582346 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP834","PC1: -7.905885e-02 PC2: -0.0288340255 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP840","PC1: -9.267375e-02 PC2: -0.0373611890 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP-147","PC1: -9.159495e-02 PC2: -0.0450614809 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP-146","PC1: -8.844809e-02 PC2: -0.0492756188 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP-243","PC1: -7.668791e-02 PC2: -0.0499591579 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP-248","PC1: -8.961996e-02 PC2: -0.0390617100 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP-246","PC1: -9.022144e-02 PC2: -0.0463276366 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP-245","PC1: -8.207673e-02 PC2: -0.0305721911 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP-201","PC1: -9.851150e-02 PC2: -0.0344355912 reg: REG River: MFY paste(River, \"-\", ID): MFY - RAP-244"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(54,92,141,1)","opacity":0.8,"size":11.3385826771654,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(54,92,141,1)"}},"hoveron":"points","name":"(MFY,REG)","legendgroup":"(MFY,REG)","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[-0.00305005577367223,0.00483652903831656,0.0217969399419659,0.018851322516713,0.0138609753305742,0.00277775878648427,0.0172998041797976,0.00793119970039753,0.00989422749759151,0.0209757653567257,0.0207828087875867,0.0018181274400688,0.0129059011851482,-0.00687341169357122,0.0113885619313394,0.00450305411624433,-0.00215300056903827,0.017633763036981,0.0165899600070209,0.0168709136335263,0.0108243798049693,0.0147485677852081,0.0299260393068008,0.0135587500208858,0.00740620488839741,0.0163400996244255,0.00715757566184406,0.0136353428211282,0.0186539603102596,0.0102084305204905,0.016706398541795,0.00756497084136027,0.0182984801109558,0.0181839570498401,0.0166024954451621,0.0213695121928749,0.0174901966088676,0.0115761626563224,0.0275410970633819,0.0106769271799363,0.00933659391867095,0.00720554132946399,0.017417804594474,0.00713606988582047,0.0129986813543811,0.00531231992383793,0.0180022323939761,0.0137883028083994,0.0105640073361915,0.00690731362200084,0.0312622869936835,0.00080211409120403,0.0146582401414529,0.00707239060412351,0.0104216946186621,0.0147439228461413,0.0139510135805033,0.0145755985973313,0.0135305330666605,0.010570896223509,0.0130447845014555,0.00749781341231124,0.00748920070435055,0.0177883434871456,-0.00431442962157346,0.0136971462500839,0.00755173788287499,0.00908743809709427,0.00939560990798126,0.00897292592211288,0.0128034465096706,0.0115871385165856,0.0134327075508826,0.0376704502489351,0.00750912339618376,0.0124004729286241,0.010687962809006,0.0175708411746473,0.00992528243796939,0.0328691205834781,0.0107509443368538,0.0145859917429328,0.0137567561329544,0.0159075518077283,0.0117160948510932,0.00822918669424443,0.0175155826491619,0.0106254297044181,6.74209155095672e-05,0.0117160085703067,0.030654753404547,0.0275267955828262,0.012848026324585,0.0238427283407617,0.00164185030669195,0.032760485221419,0.0361071236834791,0.0118810041238736,0.0214388008569219,0.0382272559447687,0.0236767810460377,0.0127266673160183,0.0337016602300702,0.029290142010183,0.00688236205633567,0.0272642607130413,0.0154238264659649,0.0403714828330991,0.0100448387424211,0.031676019861511],"y":[0.0356740832687509,0.0176590342027208,0.0281931032959705,0.0520611543263175,0.0529540402286339,0.0369777346560244,0.0390591240817915,0.0460994406427391,0.046143173756037,0.0451909313585977,0.042232637228766,0.0263360191104181,0.0422792369304822,0.042820972565716,0.0359800430972521,0.0414861416783077,0.0241412321115721,0.0472240763464638,0.0175992029527126,0.0479800589158859,0.0430466536158868,0.0353344738114351,0.0764839972614827,0.0373328081326334,0.0326316589680301,0.0413039144638385,0.0514345238442735,0.0369025874448692,0.0553527883211453,0.0337597785180964,0.0518221672652483,0.00712347294523365,0.0580584413013585,0.0383485128046098,0.0474906298138072,0.0254415010972148,0.0316022994890705,0.0515147125100157,0.0627659367304147,0.0440019179725334,0.0370118216748201,0.036104264138723,0.0508050941295677,0.0265160667360002,0.0455870117464379,0.0382560026667482,0.0286202822524598,0.051983192151355,0.0352927984184131,0.0558729071665041,0.0693860833390932,0.0343911419678291,0.0496647353755028,0.0139006993989619,0.0393947601551393,0.0419906336471719,0.0284895455514996,0.0474487102732391,0.0179743747024594,0.0171849024232159,0.037385386597181,0.0465436003429972,0.0291600611833786,0.0398820618062153,0.0223230656019167,0.0475488867690939,0.0279553932593376,0.0383067810355105,0.0311144752094804,0.030079562844586,0.0126175617366814,0.020464309760094,0.025259550667169,0.0595503876344656,0.0400970741555017,0.0297817456141079,0.0303956051671192,0.012711020055233,0.0224278573688511,0.0526840177448377,0.044754757839518,0.0189155505463837,0.0305127104427959,0.0296383130486556,0.0409756932205329,0.035944738222991,0.0300614053491063,0.0211972712002677,0.0373263854588765,0.0212335991210674,0.0506730604432525,0.0554634215208395,0.0447855238201861,0.045088723849408,0.0427679538587857,0.0648150365884015,0.0703360066140862,0.0396949694420181,0.0572507166311191,0.0708362656417501,0.0476726385660839,0.0504348168060945,0.0687203211938371,0.0682443217376494,0.0512923358196088,0.0709304641576154,0.0516451505335986,0.076096588395268,0.0532748841505808,0.0656950127336382],"text":["PC1: -3.050056e-03 PC2: 0.0356740833 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP-332","PC1: 4.836529e-03 PC2: 0.0176590342 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP-328","PC1: 2.179694e-02 PC2: 0.0281931033 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP-345","PC1: 1.885132e-02 PC2: 0.0520611543 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP773","PC1: 1.386098e-02 PC2: 0.0529540402 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP774","PC1: 2.777759e-03 PC2: 0.0369777347 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP775","PC1: 1.729980e-02 PC2: 0.0390591241 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP767","PC1: 7.931200e-03 PC2: 0.0460994406 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP772","PC1: 9.894227e-03 PC2: 0.0461431738 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP768","PC1: 2.097577e-02 PC2: 0.0451909314 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP770","PC1: 2.078281e-02 PC2: 0.0422326372 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP769","PC1: 1.818127e-03 PC2: 0.0263360191 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP603","PC1: 1.290590e-02 PC2: 0.0422792369 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP848","PC1: -6.873412e-03 PC2: 0.0428209726 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP601","PC1: 1.138856e-02 PC2: 0.0359800431 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP-329","PC1: 4.503054e-03 PC2: 0.0414861417 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP915","PC1: -2.153001e-03 PC2: 0.0241412321 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP907","PC1: 1.763376e-02 PC2: 0.0472240763 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP902","PC1: 1.658996e-02 PC2: 0.0175992030 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP850","PC1: 1.687091e-02 PC2: 0.0479800589 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP903","PC1: 1.082438e-02 PC2: 0.0430466536 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP824","PC1: 1.474857e-02 PC2: 0.0353344738 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP909","PC1: 2.992604e-02 PC2: 0.0764839973 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - AAA815","PC1: 1.355875e-02 PC2: 0.0373328081 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP904","PC1: 7.406205e-03 PC2: 0.0326316590 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP845","PC1: 1.634010e-02 PC2: 0.0413039145 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP858","PC1: 7.157576e-03 PC2: 0.0514345238 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP861","PC1: 1.363534e-02 PC2: 0.0369025874 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP851","PC1: 1.865396e-02 PC2: 0.0553527883 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP823","PC1: 1.020843e-02 PC2: 0.0337597785 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP908","PC1: 1.670640e-02 PC2: 0.0518221673 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP913","PC1: 7.564971e-03 PC2: 0.0071234729 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP817","PC1: 1.829848e-02 PC2: 0.0580584413 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP901","PC1: 1.818396e-02 PC2: 0.0383485128 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP849","PC1: 1.660250e-02 PC2: 0.0474906298 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP825","PC1: 2.136951e-02 PC2: 0.0254415011 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP842","PC1: 1.749020e-02 PC2: 0.0316022995 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP864","PC1: 1.157616e-02 PC2: 0.0515147125 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP826","PC1: 2.754110e-02 PC2: 0.0627659367 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - AAA817","PC1: 1.067693e-02 PC2: 0.0440019180 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP857","PC1: 9.336594e-03 PC2: 0.0370118217 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP853","PC1: 7.205541e-03 PC2: 0.0361042641 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP854","PC1: 1.741780e-02 PC2: 0.0508050941 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP917","PC1: 7.136070e-03 PC2: 0.0265160667 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP906","PC1: 1.299868e-02 PC2: 0.0455870117 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP900","PC1: 5.312320e-03 PC2: 0.0382560027 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP847","PC1: 1.800223e-02 PC2: 0.0286202823 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP865","PC1: 1.378830e-02 PC2: 0.0519831922 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP859","PC1: 1.056401e-02 PC2: 0.0352927984 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP867","PC1: 6.907314e-03 PC2: 0.0558729072 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP821","PC1: 3.126229e-02 PC2: 0.0693860833 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - AAA794","PC1: 8.021141e-04 PC2: 0.0343911420 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP828","PC1: 1.465824e-02 PC2: 0.0496647354 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP856","PC1: 7.072391e-03 PC2: 0.0139006994 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP844","PC1: 1.042169e-02 PC2: 0.0393947602 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP916","PC1: 1.474392e-02 PC2: 0.0419906336 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP911","PC1: 1.395101e-02 PC2: 0.0284895456 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP816","PC1: 1.457560e-02 PC2: 0.0474487103 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP866","PC1: 1.353053e-02 PC2: 0.0179743747 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP820","PC1: 1.057090e-02 PC2: 0.0171849024 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP843","PC1: 1.304478e-02 PC2: 0.0373853866 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP914","PC1: 7.497813e-03 PC2: 0.0465436003 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP912","PC1: 7.489201e-03 PC2: 0.0291600612 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP818","PC1: 1.778834e-02 PC2: 0.0398820618 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP863","PC1: -4.314430e-03 PC2: 0.0223230656 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP819","PC1: 1.369715e-02 PC2: 0.0475488868 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP822","PC1: 7.551738e-03 PC2: 0.0279553933 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP860","PC1: 9.087438e-03 PC2: 0.0383067810 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP617","PC1: 9.395610e-03 PC2: 0.0311144752 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP801","PC1: 8.972926e-03 PC2: 0.0300795628 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP855","PC1: 1.280345e-02 PC2: 0.0126175617 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP809","PC1: 1.158714e-02 PC2: 0.0204643098 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP810","PC1: 1.343271e-02 PC2: 0.0252595507 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP805","PC1: 3.767045e-02 PC2: 0.0595503876 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP814","PC1: 7.509123e-03 PC2: 0.0400970742 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP846","PC1: 1.240047e-02 PC2: 0.0297817456 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP650","PC1: 1.068796e-02 PC2: 0.0303956052 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP827","PC1: 1.757084e-02 PC2: 0.0127110201 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP811","PC1: 9.925282e-03 PC2: 0.0224278574 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP804","PC1: 3.286912e-02 PC2: 0.0526840177 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP813","PC1: 1.075094e-02 PC2: 0.0447547578 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP771","PC1: 1.458599e-02 PC2: 0.0189155505 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP852","PC1: 1.375676e-02 PC2: 0.0305127104 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP799","PC1: 1.590755e-02 PC2: 0.0296383130 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP803","PC1: 1.171609e-02 PC2: 0.0409756932 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP798","PC1: 8.229187e-03 PC2: 0.0359447382 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP808","PC1: 1.751558e-02 PC2: 0.0300614053 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP806","PC1: 1.062543e-02 PC2: 0.0211972712 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP807","PC1: 6.742092e-05 PC2: 0.0373263855 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP800","PC1: 1.171601e-02 PC2: 0.0212335991 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP802","PC1: 3.065475e-02 PC2: 0.0506730604 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP868","PC1: 2.752680e-02 PC2: 0.0554634215 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP876","PC1: 1.284803e-02 PC2: 0.0447855238 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - AAA793","PC1: 2.384273e-02 PC2: 0.0450887238 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - AAA835","PC1: 1.641850e-03 PC2: 0.0427679539 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP-331","PC1: 3.276049e-02 PC2: 0.0648150366 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP871","PC1: 3.610712e-02 PC2: 0.0703360066 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP880","PC1: 1.188100e-02 PC2: 0.0396949694 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - AAA841","PC1: 2.143880e-02 PC2: 0.0572507166 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP869","PC1: 3.822726e-02 PC2: 0.0708362656 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP879","PC1: 2.367678e-02 PC2: 0.0476726386 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - AAA836","PC1: 1.272667e-02 PC2: 0.0504348168 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP-330","PC1: 3.370166e-02 PC2: 0.0687203212 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP870","PC1: 2.929014e-02 PC2: 0.0682443217 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP873","PC1: 6.882362e-03 PC2: 0.0512923358 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - AAA839","PC1: 2.726426e-02 PC2: 0.0709304642 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP874","PC1: 1.542383e-02 PC2: 0.0516451505 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - AAA840","PC1: 4.037148e-02 PC2: 0.0760965884 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP878","PC1: 1.004484e-02 PC2: 0.0532748842 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - AAA814","PC1: 3.167602e-02 PC2: 0.0656950127 reg: UNREG River: NFA paste(River, \"-\", ID): NFA - RAP877"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(39,127,142,1)","opacity":0.8,"size":11.3385826771654,"symbol":"triangle-up","line":{"width":1.88976377952756,"color":"rgba(39,127,142,1)"}},"hoveron":"points","name":"(NFA,UNREG)","legendgroup":"(NFA,UNREG)","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[-0.0327975819993901,-0.0378559160118753,-0.0319694922848234,-0.0441198222544484],"y":[-0.0798742626999417,-0.0826491602091805,-0.0712190108165439,-0.0868127488532363],"text":["PC1: -3.279758e-02 PC2: -0.0798742627 reg: REG River: NFF paste(River, \"-\", ID): NFF - RAP1616","PC1: -3.785592e-02 PC2: -0.0826491602 reg: REG River: NFF paste(River, \"-\", ID): NFF - RAP1568","PC1: -3.196949e-02 PC2: -0.0712190108 reg: REG River: NFF paste(River, \"-\", ID): NFF - RAP1592","PC1: -4.411982e-02 PC2: -0.0868127489 reg: REG River: NFF paste(River, \"-\", ID): NFF - RAP1604"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(31,161,135,1)","opacity":0.8,"size":11.3385826771654,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(31,161,135,1)"}},"hoveron":"points","name":"(NFF,REG)","legendgroup":"(NFF,REG)","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[-0.071302012833613,-0.0742692354315407,-0.0780617711431095,-0.0810462324064236,-0.0798214298307373,-0.0808751453176241,-0.0742302535512652,-0.0680204986104853,-0.0610899612801079,-0.0692868606823704,-0.0605727290037246,-0.0754100853351571,-0.0751418553002866,-0.0785708758335312,-0.0843795678732264,-0.0893771579828917,-0.090302034795884,-0.0722578339204725],"y":[-0.025737121833031,-0.0311879796964974,-0.0334487975991232,-0.0361933714494161,-0.0378893098419771,-0.0446117689584891,-0.046756557946975,-0.0243715182826709,-0.0204013027008413,-0.0404689903206885,-0.0270178019662332,-0.0324412598319476,-0.0260959033420183,-0.0394054058727455,-0.0374088826072097,-0.0314976807506423,-0.0485995578757966,-0.0286003999391051],"text":["PC1: -7.130201e-02 PC2: -0.0257371218 reg: UNREG River: NFY paste(River, \"-\", ID): NFY - RAP1697","PC1: -7.426924e-02 PC2: -0.0311879797 reg: UNREG River: NFY paste(River, \"-\", ID): NFY - RAP1716","PC1: -7.806177e-02 PC2: -0.0334487976 reg: UNREG River: NFY paste(River, \"-\", ID): NFY - RAP921","PC1: -8.104623e-02 PC2: -0.0361933714 reg: UNREG River: NFY paste(River, \"-\", ID): NFY - RAP918","PC1: -7.982143e-02 PC2: -0.0378893098 reg: UNREG River: NFY paste(River, \"-\", ID): NFY - RAP922","PC1: -8.087515e-02 PC2: -0.0446117690 reg: UNREG River: NFY paste(River, \"-\", ID): NFY - RAP919","PC1: -7.423025e-02 PC2: -0.0467565579 reg: UNREG River: NFY paste(River, \"-\", ID): NFY - RAP920","PC1: -6.802050e-02 PC2: -0.0243715183 reg: UNREG River: NFY paste(River, \"-\", ID): NFY - RAP1683","PC1: -6.108996e-02 PC2: -0.0204013027 reg: UNREG River: NFY paste(River, \"-\", ID): NFY - RAP1656","PC1: -6.928686e-02 PC2: -0.0404689903 reg: UNREG River: NFY paste(River, \"-\", ID): NFY - RAP1689","PC1: -6.057273e-02 PC2: -0.0270178020 reg: UNREG River: NFY paste(River, \"-\", ID): NFY - RAP1676","PC1: -7.541009e-02 PC2: -0.0324412598 reg: UNREG River: NFY paste(River, \"-\", ID): NFY - AAA808","PC1: -7.514186e-02 PC2: -0.0260959033 reg: UNREG River: NFY paste(River, \"-\", ID): NFY - AAA830","PC1: -7.857088e-02 PC2: -0.0394054059 reg: UNREG River: NFY paste(River, \"-\", ID): NFY - AAA798","PC1: -8.437957e-02 PC2: -0.0374088826 reg: UNREG River: NFY paste(River, \"-\", ID): NFY - AAB850","PC1: -8.937716e-02 PC2: -0.0314976808 reg: UNREG River: NFY paste(River, \"-\", ID): NFY - AAA797","PC1: -9.030203e-02 PC2: -0.0485995579 reg: UNREG River: NFY paste(River, \"-\", ID): NFY - AAA799","PC1: -7.225783e-02 PC2: -0.0286003999 reg: UNREG River: NFY paste(River, \"-\", ID): NFY - AAA800"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(74,193,109,1)","opacity":0.8,"size":11.3385826771654,"symbol":"triangle-up","line":{"width":1.88976377952756,"color":"rgba(74,193,109,1)"}},"hoveron":"points","name":"(NFY,UNREG)","legendgroup":"(NFY,UNREG)","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.113246501600054,0.12035726950368,0.122577354552341,0.119633869091745,0.124276859337525,0.116026994919435],"y":[-0.241005210336161,-0.23170686872412,-0.256365931678616,-0.254067135801777,-0.273030236886487,-0.245516104920138],"text":["PC1: 1.132465e-01 PC2: -0.2410052103 reg: REG River: SFA paste(River, \"-\", ID): SFA - RAP776","PC1: 1.203573e-01 PC2: -0.2317068687 reg: REG River: SFA paste(River, \"-\", ID): SFA - RAP781","PC1: 1.225774e-01 PC2: -0.2563659317 reg: REG River: SFA paste(River, \"-\", ID): SFA - RAP779","PC1: 1.196339e-01 PC2: -0.2540671358 reg: REG River: SFA paste(River, \"-\", ID): SFA - RAP778","PC1: 1.242769e-01 PC2: -0.2730302369 reg: REG River: SFA paste(River, \"-\", ID): SFA - RAP777","PC1: 1.160270e-01 PC2: -0.2455161049 reg: REG River: SFA paste(River, \"-\", ID): SFA - RAP780"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(159,218,58,1)","opacity":0.8,"size":11.3385826771654,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(159,218,58,1)"}},"hoveron":"points","name":"(SFA,REG)","legendgroup":"(SFA,REG)","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[-0.0718768253589441,-0.0703076596161376,-0.0752047558492672,-0.064422314367479,-0.0669530005850492,-0.076459397595631,-0.0708155917764339,-0.0758623598350467,-0.0689873353367451,-0.0731358277772785,-0.0655938596008074,-0.0685930350548577,-0.0708563447880125,-0.0729719274508115,-0.0692007517254551,-0.0712516808956968,-0.0748569120199301,-0.07793449819612,-0.074366345515202,-0.0694612979544548,-0.0822879378866432,-0.0747208683008326,-0.0634611470729596,-0.0683608280594821,-0.0704476505766437,-0.0754082019668433,-0.0709154428073134,-0.0751086555171977,-0.0764666171826645,-0.0832777882048488,-0.0731452294371264,-0.0832843844479267,-0.0727494918128467,-0.0760508697626552,-0.0669551875092761,-0.0706018138945643,-0.0760269783017964,-0.0658775049534087,-0.0752258291017255],"y":[-0.00650054597826699,-0.0476775188282311,-0.0213715525837014,-0.0474130922354335,-0.0124567436380168,-0.0150106192301851,-0.018642444122637,-0.0267771257476557,-0.00580057226537476,-0.0223540032353169,-0.0157006624378648,-0.0372994491252885,-0.0170323419671984,-0.0201244829543685,-0.0185494467750898,-0.014387263554891,-0.0224058089263293,-0.0164046992894648,-0.0274867005823991,-0.0396390083588749,-0.0424716617722098,-0.0124715594415771,-0.0120283804495414,-0.0132398696744053,-0.0433970189287369,-0.0370935845675415,-0.020053448581255,-0.0243357375645866,-0.0223862241191893,-0.00897497723660082,-0.0183214203806525,-0.00230987203454451,-0.0198731355498498,-0.0187079226964053,-0.0062465815249342,0.000679597712126058,-0.0142053608999515,-0.0210732858246203,-0.00933023315067756],"text":["PC1: -7.187683e-02 PC2: -0.0065005460 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-121","PC1: -7.030766e-02 PC2: -0.0476775188 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-131","PC1: -7.520476e-02 PC2: -0.0213715526 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-130","PC1: -6.442231e-02 PC2: -0.0474130922 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-132","PC1: -6.695300e-02 PC2: -0.0124567436 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-123","PC1: -7.645940e-02 PC2: -0.0150106192 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-275","PC1: -7.081559e-02 PC2: -0.0186424441 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-128","PC1: -7.586236e-02 PC2: -0.0267771257 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-135","PC1: -6.898734e-02 PC2: -0.0058005723 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-100","PC1: -7.313583e-02 PC2: -0.0223540032 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-134","PC1: -6.559386e-02 PC2: -0.0157006624 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-274","PC1: -6.859304e-02 PC2: -0.0372994491 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-133","PC1: -7.085634e-02 PC2: -0.0170323420 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP644","PC1: -7.297193e-02 PC2: -0.0201244830 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP705","PC1: -6.920075e-02 PC2: -0.0185494468 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP643","PC1: -7.125168e-02 PC2: -0.0143872636 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP680","PC1: -7.485691e-02 PC2: -0.0224058089 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP675","PC1: -7.793450e-02 PC2: -0.0164046993 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP649","PC1: -7.436635e-02 PC2: -0.0274867006 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-136","PC1: -6.946130e-02 PC2: -0.0396390084 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-137","PC1: -8.228794e-02 PC2: -0.0424716618 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-129","PC1: -7.472087e-02 PC2: -0.0124715594 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-099","PC1: -6.346115e-02 PC2: -0.0120283804 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-125","PC1: -6.836083e-02 PC2: -0.0132398697 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-124","PC1: -7.044765e-02 PC2: -0.0433970189 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-126","PC1: -7.540820e-02 PC2: -0.0370935846 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP-138","PC1: -7.091544e-02 PC2: -0.0200534486 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP641","PC1: -7.510866e-02 PC2: -0.0243357376 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP676","PC1: -7.646662e-02 PC2: -0.0223862241 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP640","PC1: -8.327779e-02 PC2: -0.0089749772 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP648","PC1: -7.314523e-02 PC2: -0.0183214204 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP678","PC1: -8.328438e-02 PC2: -0.0023098720 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP645","PC1: -7.274949e-02 PC2: -0.0198731355 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP646","PC1: -7.605087e-02 PC2: -0.0187079227 reg: REG River: SFY paste(River, \"-\", ID): SFY - RAP642","PC1: -6.695519e-02 PC2: -0.0062465815 reg: REG River: SFY paste(River, \"-\", ID): SFY - AAA825","PC1: -7.060181e-02 PC2: 0.0006795977 reg: REG River: SFY paste(River, \"-\", ID): SFY - AAA824","PC1: -7.602698e-02 PC2: -0.0142053609 reg: REG River: SFY paste(River, \"-\", ID): SFY - AAA827","PC1: -6.587750e-02 PC2: -0.0210732858 reg: REG River: SFY paste(River, \"-\", ID): SFY - AAA826","PC1: -7.522583e-02 PC2: -0.0093302332 reg: REG River: SFY paste(River, \"-\", ID): SFY - AAA828"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(253,231,37,1)","opacity":0.8,"size":11.3385826771654,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(253,231,37,1)"}},"hoveron":"points","name":"(SFY,REG)","legendgroup":"(SFY,REG)","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null}],"layout":{"margin":{"t":45.0150032615786,"r":7.30593607305936,"b":41.4350945857795,"l":48.9497716894977},"plot_bgcolor":"rgba(255,255,255,1)","paper_bgcolor":"rgba(255,255,255,1)","font":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187},"title":"N. Sierra Nevada: PC1 (2.1%) / PC2 (1.37%)","titlefont":{"color":"rgba(0,0,0,1)","family":"","size":17.5342465753425},"xaxis":{"domain":[0,1],"type":"linear","autorange":false,"range":[-0.109650922207841,0.135416277506352],"tickmode":"array","ticktext":["-0.10","-0.05","0.00","0.05","0.10"],"tickvals":[-0.1,-0.05,0,0.05,0.1],"categoryorder":"array","categoryarray":["-0.10","-0.05","0.00","0.05","0.10"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":3.65296803652968,"tickwidth":0.66417600664176,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":11.689497716895},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.66417600664176,"zeroline":false,"anchor":"y","title":"PC1","titlefont":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187},"hoverformat":".2f"},"yaxis":{"domain":[0,1],"type":"linear","autorange":false,"range":[-0.290505948593886,0.0939597089688812],"tickmode":"array","ticktext":["-0.2","-0.1","0.0"],"tickvals":[-0.2,-0.1,0],"categoryorder":"array","categoryarray":["-0.2","-0.1","0.0"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":3.65296803652968,"tickwidth":0.66417600664176,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":11.689497716895},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.66417600664176,"zeroline":false,"anchor":"x","title":"PC2","titlefont":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187},"hoverformat":".2f"},"shapes":[{"type":"rect","fillcolor":"transparent","line":{"color":"rgba(51,51,51,1)","width":0.66417600664176,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0,"x1":1,"y0":0,"y1":1}],"showlegend":true,"legend":{"bgcolor":"rgba(255,255,255,1)","bordercolor":"transparent","borderwidth":1.88976377952756,"font":{"color":"rgba(0,0,0,1)","family":"","size":11.689497716895},"y":0.876265466816648},"annotations":[{"text":"River reg","x":1.02,"y":1,"showarrow":false,"ax":0,"ay":0,"font":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187},"xref":"paper","yref":"paper","textangle":-0,"xanchor":"left","yanchor":"bottom","legendTitle":true}],"hovermode":"closest","barmode":"relative"},"config":{"doubleClick":"reset","modeBarButtonsToAdd":[{"name":"Collaborate","icon":{"width":1000,"ascent":500,"descent":-50,"path":"M487 375c7-10 9-23 5-36l-79-259c-3-12-11-23-22-31-11-8-22-12-35-12l-263 0c-15 0-29 5-43 15-13 10-23 23-28 37-5 13-5 25-1 37 0 0 0 3 1 7 1 5 1 8 1 11 0 2 0 4-1 6 0 3-1 5-1 6 1 2 2 4 3 6 1 2 2 4 4 6 2 3 4 5 5 7 5 7 9 16 13 26 4 10 7 19 9 26 0 2 0 5 0 9-1 4-1 6 0 8 0 2 2 5 4 8 3 3 5 5 5 7 4 6 8 15 12 26 4 11 7 19 7 26 1 1 0 4 0 9-1 4-1 7 0 8 1 2 3 5 6 8 4 4 6 6 6 7 4 5 8 13 13 24 4 11 7 20 7 28 1 1 0 4 0 7-1 3-1 6-1 7 0 2 1 4 3 6 1 1 3 4 5 6 2 3 3 5 5 6 1 2 3 5 4 9 2 3 3 7 5 10 1 3 2 6 4 10 2 4 4 7 6 9 2 3 4 5 7 7 3 2 7 3 11 3 3 0 8 0 13-1l0-1c7 2 12 2 14 2l218 0c14 0 25-5 32-16 8-10 10-23 6-37l-79-259c-7-22-13-37-20-43-7-7-19-10-37-10l-248 0c-5 0-9-2-11-5-2-3-2-7 0-12 4-13 18-20 41-20l264 0c5 0 10 2 16 5 5 3 8 6 10 11l85 282c2 5 2 10 2 17 7-3 13-7 17-13z m-304 0c-1-3-1-5 0-7 1-1 3-2 6-2l174 0c2 0 4 1 7 2 2 2 4 4 5 7l6 18c0 3 0 5-1 7-1 1-3 2-6 2l-173 0c-3 0-5-1-8-2-2-2-4-4-4-7z m-24-73c-1-3-1-5 0-7 2-2 3-2 6-2l174 0c2 0 5 0 7 2 3 2 4 4 5 7l6 18c1 2 0 5-1 6-1 2-3 3-5 3l-174 0c-3 0-5-1-7-3-3-1-4-4-5-6z"},"click":"function(gd) { \n // is this being viewed in RStudio?\n if (location.search == '?viewer_pane=1') {\n alert('To learn about plotly for collaboration, visit:\\n https://cpsievert.github.io/plotly_book/plot-ly-for-collaboration.html');\n } else {\n window.open('https://cpsievert.github.io/plotly_book/plot-ly-for-collaboration.html', '_blank');\n }\n }"}],"cloud":false},"source":"A","attrs":{"16b36b0b3adb":{"x":{},"y":{},"shape":{},"colour":{},"label":{},"type":"scatter"}},"cur_data":"16b36b0b3adb","visdat":{"16b36b0b3adb":["function (y) ","x"]},"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.2,"selected":{"opacity":1}},"base_url":"https://plot.ly"},"evals":["config.modeBarButtonsToAdd.0.click"],"jsHooks":{"render":[{"code":"function(el, x) { var ctConfig = crosstalk.var('plotlyCrosstalkOpts').set({\"on\":\"plotly_click\",\"persistent\":false,\"dynamic\":false,\"selectize\":false,\"opacityDim\":0.2,\"selected\":{\"opacity\":1}}); }","data":null}]}}</script>

---

### PCA: Unimpaired Watershed
Limited structure, greater similarity across subpops. (n=8,739 SNPs)

<div id="16b31ac82e48" style="width:792px;height:504px;" class="plotly html-widget"></div>
<script type="application/json" data-for="16b31ac82e48">{"x":{"data":[{"x":[0.0565434248227299,-0.00110803540924767,0.0925481896028512,0.0748151934106467,-0.0166425270208456,0.052177012916265,-0.0167254689896434,0.0610341183113616,0.0776641061870198,0.0642988974605589,0.0685508782239123,0.0211991347781494,0.041745193813436,-0.0327880483784156,0.0505236907280594,0.0491720246030353,0.0512640859799571,0.0283759463029451,0.063671478886422,0.0493246844406966,0.0280802689416997,0.0644586882120967,0.0858141600184736,-0.0146537191427958,0.0805762136571942,0.102054767806145,0.0666814504092192,0.0572137076344962,0.0466363272897406,0.0328748059492029],"y":[-0.23963834522925,-0.175920424064556,-0.0191233684541016,-0.00918769122839357,-0.103198625991901,-0.0091697782489389,-0.00086750954992533,0.0263338912678895,-0.0310109184504807,-0.0566907547967644,-0.0757214884098725,0.0311331562469207,-0.0299964257306828,-0.0524137444224981,0.0428477108644484,-0.00355457933355897,0.00906376194005847,-0.0993976828027654,-0.0368277151448232,-0.0526757035071127,-0.0717001357079647,-0.100717687015221,0.0132066280212061,-0.21523471822441,0.0139768266190151,-0.01443821571591,-0.0934876534971161,-0.121224807083362,-0.00726990239424507,-0.0604361627641536],"text":["PC1: 0.0565434248 PC2: -0.2396383452 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP-332","PC1: -0.0011080354 PC2: -0.1759204241 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP-328","PC1: 0.0925481896 PC2: -0.0191233685 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP773","PC1: 0.0748151934 PC2: -0.0091876912 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP774","PC1: -0.0166425270 PC2: -0.1031986260 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP775","PC1: 0.0521770129 PC2: -0.0091697782 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP767","PC1: -0.0167254690 PC2: -0.0008675095 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP772","PC1: 0.0610341183 PC2: 0.0263338913 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP768","PC1: 0.0776641062 PC2: -0.0310109185 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP770","PC1: 0.0642988975 PC2: -0.0566907548 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP769","PC1: 0.0685508782 PC2: -0.0757214884 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP-329","PC1: 0.0211991348 PC2: 0.0311331562 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP915","PC1: 0.0417451938 PC2: -0.0299964257 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP909","PC1: -0.0327880484 PC2: -0.0524137444 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP908","PC1: 0.0505236907 PC2: 0.0428477109 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP913","PC1: 0.0491720246 PC2: -0.0035545793 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP917","PC1: 0.0512640860 PC2: 0.0090637619 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP916","PC1: 0.0283759463 PC2: -0.0993976828 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP911","PC1: 0.0636714789 PC2: -0.0368277151 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP914","PC1: 0.0493246844 PC2: -0.0526757035 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP912","PC1: 0.0280802689 PC2: -0.0717001357 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP771","PC1: 0.0644586882 PC2: -0.1007176870 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - AAA793","PC1: 0.0858141600 PC2: 0.0132066280 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - AAA835","PC1: -0.0146537191 PC2: -0.2152347182 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP-331","PC1: 0.0805762137 PC2: 0.0139768266 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - AAA841","PC1: 0.1020547678 PC2: -0.0144382157 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - AAA836","PC1: 0.0666814504 PC2: -0.0934876535 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - RAP-330","PC1: 0.0572137076 PC2: -0.1212248071 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - AAA839","PC1: 0.0466363273 PC2: -0.0072699024 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - AAA840","PC1: 0.0328748059 PC2: -0.0604361628 Pop: NFA paste(River, \"-\", ID): Upper North Fork American River - AAA814"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(68,1,84,1)","opacity":0.8,"size":15.1181102362205,"symbol":"triangle-up","line":{"width":1.88976377952756,"color":"rgba(68,1,84,1)"}},"hoveron":"points","name":"NFA","legendgroup":"NFA","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[-0.211381805413236,-0.183786819695037,-0.300503936851666,-0.244382121016699,-0.343584322422113,-0.377367904616858,-0.130277372990991,-0.131334036659141,-0.104045563220659,-0.093536124942713,-0.204221776016312,-0.152773603893368,-0.201451443564771,-0.152853413570857],"y":[0.053291266940762,-0.0717272889363079,0.0206924790820597,0.0322305865127075,-0.103159616067578,-0.104725352973709,0.131214525328788,0.0765643997752587,0.0768452104347765,0.101799082423263,-0.0240753781868712,0.0100865053654015,0.0221568225379937,0.00423733862353768],"text":["PC1: -0.2113818054 PC2: 0.0532912669 Pop: NFA-BUNC paste(River, \"-\", ID): Lower North Fork American River - RAP801","PC1: -0.1837868197 PC2: -0.0717272889 Pop: NFA-BUNC paste(River, \"-\", ID): Lower North Fork American River - RAP809","PC1: -0.3005039369 PC2: 0.0206924791 Pop: NFA-BUNC paste(River, \"-\", ID): Lower North Fork American River - RAP810","PC1: -0.2443821210 PC2: 0.0322305865 Pop: NFA-BUNC paste(River, \"-\", ID): Lower North Fork American River - RAP805","PC1: -0.3435843224 PC2: -0.1031596161 Pop: NFA-BUNC paste(River, \"-\", ID): Lower North Fork American River - RAP811","PC1: -0.3773679046 PC2: -0.1047253530 Pop: NFA-BUNC paste(River, \"-\", ID): Lower North Fork American River - RAP804","PC1: -0.1302773730 PC2: 0.1312145253 Pop: NFA-BUNC paste(River, \"-\", ID): Lower North Fork American River - RAP799","PC1: -0.1313340367 PC2: 0.0765643998 Pop: NFA-BUNC paste(River, \"-\", ID): Lower North Fork American River - RAP803","PC1: -0.1040455632 PC2: 0.0768452104 Pop: NFA-BUNC paste(River, \"-\", ID): Lower North Fork American River - RAP798","PC1: -0.0935361249 PC2: 0.1017990824 Pop: NFA-BUNC paste(River, \"-\", ID): Lower North Fork American River - RAP808","PC1: -0.2042217760 PC2: -0.0240753782 Pop: NFA-BUNC paste(River, \"-\", ID): Lower North Fork American River - RAP806","PC1: -0.1527736039 PC2: 0.0100865054 Pop: NFA-BUNC paste(River, \"-\", ID): Lower North Fork American River - RAP807","PC1: -0.2014514436 PC2: 0.0221568225 Pop: NFA-BUNC paste(River, \"-\", ID): Lower North Fork American River - RAP800","PC1: -0.1528534136 PC2: 0.0042373386 Pop: NFA-BUNC paste(River, \"-\", ID): Lower North Fork American River - RAP802"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(72,37,118,1)","opacity":0.8,"size":15.1181102362205,"symbol":"triangle-up","line":{"width":1.88976377952756,"color":"rgba(72,37,118,1)"}},"hoveron":"points","name":"NFA-BUNC","legendgroup":"NFA-BUNC","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0221818507936477,0.0892904325449984,0.016416656775019,0.0767862315761918,0.0841721743320645],"y":[-0.0365745661554596,0.0908722378653511,0.0264321525161016,0.0584991838136962,0.0607076034513308],"text":["PC1: 0.0221818508 PC2: -0.0365745662 Pop: NFA-EUCHDS paste(River, \"-\", ID): Upper North Fork American River - RAP868","PC1: 0.0892904325 PC2: 0.0908722379 Pop: NFA-EUCHDS paste(River, \"-\", ID): Upper North Fork American River - RAP871","PC1: 0.0164166568 PC2: 0.0264321525 Pop: NFA-EUCHDS paste(River, \"-\", ID): Upper North Fork American River - RAP869","PC1: 0.0767862316 PC2: 0.0584991838 Pop: NFA-EUCHDS paste(River, \"-\", ID): Upper North Fork American River - RAP870","PC1: 0.0841721743 PC2: 0.0607076035 Pop: NFA-EUCHDS paste(River, \"-\", ID): Upper North Fork American River - RAP873"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(65,68,135,1)","opacity":0.8,"size":15.1181102362205,"symbol":"triangle-up","line":{"width":1.88976377952756,"color":"rgba(65,68,135,1)"}},"hoveron":"points","name":"NFA-EUCHDS","legendgroup":"NFA-EUCHDS","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0882441794778311,0.0702645937477644,0.09076087518353,0.0603583176414417],"y":[-0.0667747319326436,0.0934814711868166,0.0801570878210239,0.00832378689125163],"text":["PC1: 0.0882441795 PC2: -0.0667747319 Pop: NFA-EUCHUS paste(River, \"-\", ID): Upper North Fork American River - RAP876","PC1: 0.0702645937 PC2: 0.0934814712 Pop: NFA-EUCHUS paste(River, \"-\", ID): Upper North Fork American River - RAP874","PC1: 0.0907608752 PC2: 0.0801570878 Pop: NFA-EUCHUS paste(River, \"-\", ID): Upper North Fork American River - RAP878","PC1: 0.0603583176 PC2: 0.0083237869 Pop: NFA-EUCHUS paste(River, \"-\", ID): Upper North Fork American River - RAP877"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(53,96,141,1)","opacity":0.8,"size":15.1181102362205,"symbol":"triangle-up","line":{"width":1.88976377952756,"color":"rgba(53,96,141,1)"}},"hoveron":"points","name":"NFA-EUCHUS","legendgroup":"NFA-EUCHUS","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.00671687547874894,-0.00332163239807765,0.0142896607406243,0.009751812576732,-0.0527105824306147,0.00999656576315957,0.0277200622036085,0.0245283227441937,0.0144097680401559,0.0242542544189318,-0.00824213253448368],"y":[0.106611515321219,0.0318805322836981,0.104834755534455,0.107332787935018,0.0389919120009416,0.0686454484507326,0.0938074286753347,0.113030260698013,-0.0447197004531208,0.0872766959459456,0.0501644147646811],"text":["PC1: 0.0067168755 PC2: 0.1066115153 Pop: NFA-INDC paste(River, \"-\", ID): Upper North Fork American River - RAP858","PC1: -0.0033216324 PC2: 0.0318805323 Pop: NFA-INDC paste(River, \"-\", ID): Upper North Fork American River - RAP861","PC1: 0.0142896607 PC2: 0.1048347555 Pop: NFA-INDC paste(River, \"-\", ID): Upper North Fork American River - RAP864","PC1: 0.0097518126 PC2: 0.1073327879 Pop: NFA-INDC paste(River, \"-\", ID): Upper North Fork American River - RAP857","PC1: -0.0527105824 PC2: 0.0389919120 Pop: NFA-INDC paste(River, \"-\", ID): Upper North Fork American River - RAP865","PC1: 0.0099965658 PC2: 0.0686454485 Pop: NFA-INDC paste(River, \"-\", ID): Upper North Fork American River - RAP859","PC1: 0.0277200622 PC2: 0.0938074287 Pop: NFA-INDC paste(River, \"-\", ID): Upper North Fork American River - RAP867","PC1: 0.0245283227 PC2: 0.1130302607 Pop: NFA-INDC paste(River, \"-\", ID): Upper North Fork American River - RAP856","PC1: 0.0144097680 PC2: -0.0447197005 Pop: NFA-INDC paste(River, \"-\", ID): Upper North Fork American River - RAP866","PC1: 0.0242542544 PC2: 0.0872766959 Pop: NFA-INDC paste(River, \"-\", ID): Upper North Fork American River - RAP863","PC1: -0.0082421325 PC2: 0.0501644148 Pop: NFA-INDC paste(River, \"-\", ID): Upper North Fork American River - RAP860"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(42,120,142,1)","opacity":0.8,"size":15.1181102362205,"symbol":"triangle-up","line":{"width":1.88976377952756,"color":"rgba(42,120,142,1)"}},"hoveron":"points","name":"NFA-INDC","legendgroup":"NFA-INDC","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0553322601900457,0.0754221045211139],"y":[0.018363067483401,0.078497036385018],"text":["PC1: 0.0553322602 PC2: 0.0183630675 Pop: NFA-NFNFA paste(River, \"-\", ID): Upper North Fork American River - RAP880","PC1: 0.0754221045 PC2: 0.0784970364 Pop: NFA-NFNFA paste(River, \"-\", ID): Upper North Fork American River - RAP879"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(33,144,140,1)","opacity":0.8,"size":15.1181102362205,"symbol":"triangle-up","line":{"width":1.88976377952756,"color":"rgba(33,144,140,1)"}},"hoveron":"points","name":"NFA-NFNFA","legendgroup":"NFA-NFNFA","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[-0.0814423898299366,0.0235198746782681,-0.0467097565265094,0.000181978948268988,-0.0228001095541424],"y":[-0.0591791443315573,0.0748806960771521,0.0499472106004581,-0.0600810261912581,-0.0452442219915358],"text":["PC1: -0.0814423898 PC2: -0.0591791443 Pop: NFA-POND paste(River, \"-\", ID): Lower North Fork American River - RAP817","PC1: 0.0235198747 PC2: 0.0748806961 Pop: NFA-POND paste(River, \"-\", ID): Lower North Fork American River - RAP816","PC1: -0.0467097565 PC2: 0.0499472106 Pop: NFA-POND paste(River, \"-\", ID): Lower North Fork American River - RAP820","PC1: 0.0001819789 PC2: -0.0600810262 Pop: NFA-POND paste(River, \"-\", ID): Lower North Fork American River - RAP818","PC1: -0.0228001096 PC2: -0.0452442220 Pop: NFA-POND paste(River, \"-\", ID): Lower North Fork American River - RAP819"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(34,168,132,1)","opacity":0.8,"size":15.1181102362205,"symbol":"triangle-up","line":{"width":1.88976377952756,"color":"rgba(34,168,132,1)"}},"hoveron":"points","name":"NFA-POND","legendgroup":"NFA-POND","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0461082707024063,0.0187675469843314,0.0595348678016894,0.050890792999333,0.102124288741664,0.0654119224305405,0.0655953777715805,-0.102872104635279,0.0545414235486222,0.0632721141138839,0.0618865965942193],"y":[-0.27854553395952,-0.517698189027166,-0.143373041047501,-0.0041509028374768,0.0365208761736356,-0.0701814732401519,-0.0405318851033138,-0.203304206462238,0.0796364952897429,-0.0928259830482762,-0.0473875813479187],"text":["PC1: 0.0461082707 PC2: -0.2785455340 Pop: NFA-ROBR paste(River, \"-\", ID): Upper North Fork American River - RAP603","PC1: 0.0187675470 PC2: -0.5176981890 Pop: NFA-ROBR paste(River, \"-\", ID): Upper North Fork American River - RAP601","PC1: 0.0595348678 PC2: -0.1433730410 Pop: NFA-ROBR paste(River, \"-\", ID): Upper North Fork American River - RAP907","PC1: 0.0508907930 PC2: -0.0041509028 Pop: NFA-ROBR paste(River, \"-\", ID): Upper North Fork American River - RAP902","PC1: 0.1021242887 PC2: 0.0365208762 Pop: NFA-ROBR paste(River, \"-\", ID): Upper North Fork American River - RAP903","PC1: 0.0654119224 PC2: -0.0701814732 Pop: NFA-ROBR paste(River, \"-\", ID): Upper North Fork American River - RAP904","PC1: 0.0655953778 PC2: -0.0405318851 Pop: NFA-ROBR paste(River, \"-\", ID): Upper North Fork American River - RAP901","PC1: -0.1028721046 PC2: -0.2033042065 Pop: NFA-ROBR paste(River, \"-\", ID): Upper North Fork American River - RAP906","PC1: 0.0545414235 PC2: 0.0796364953 Pop: NFA-ROBR paste(River, \"-\", ID): Upper North Fork American River - RAP900","PC1: 0.0632721141 PC2: -0.0928259830 Pop: NFA-ROBR paste(River, \"-\", ID): Upper North Fork American River - RAP617","PC1: 0.0618865966 PC2: -0.0473875813 Pop: NFA-ROBR paste(River, \"-\", ID): Upper North Fork American River - RAP650"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(67,191,113,1)","opacity":0.8,"size":15.1181102362205,"symbol":"triangle-up","line":{"width":1.88976377952756,"color":"rgba(67,191,113,1)"}},"hoveron":"points","name":"NFA-ROBR","legendgroup":"NFA-ROBR","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0944216049947109,0.0848025854279425,0.0820601929261702,0.0228405944395817,0.0658332004456589],"y":[0.122033027567853,0.0636427385964917,0.105534312015789,0.0598809451889844,0.110187254959781],"text":["PC1: 0.0944216050 PC2: 0.1220330276 Pop: NFA-SAIC paste(River, \"-\", ID): Upper North Fork American River - AAA815","PC1: 0.0848025854 PC2: 0.0636427386 Pop: NFA-SAIC paste(River, \"-\", ID): Upper North Fork American River - AAA817","PC1: 0.0820601929 PC2: 0.1055343120 Pop: NFA-SAIC paste(River, \"-\", ID): Upper North Fork American River - AAA794","PC1: 0.0228405944 PC2: 0.0598809452 Pop: NFA-SAIC paste(River, \"-\", ID): Upper North Fork American River - RAP814","PC1: 0.0658332004 PC2: 0.1101872550 Pop: NFA-SAIC paste(River, \"-\", ID): Upper North Fork American River - RAP813"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(122,209,81,1)","opacity":0.8,"size":15.1181102362205,"symbol":"triangle-up","line":{"width":1.88976377952756,"color":"rgba(122,209,81,1)"}},"hoveron":"points","name":"NFA-SAIC","legendgroup":"NFA-SAIC","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[-0.0125979542482305,-0.0264341335389038,-0.102195380006056,-0.00810941279219916,-0.0801600498907737,-0.0513362498905512,-0.0500368212419985,-0.0199268009246331,-0.00837466667371934,-0.0247535277058426,-0.0975416074143468,-0.0625280620995158,-0.034225869942852,-0.00959054851240758,-0.08116587581046],"y":[0.0728779392045057,0.0779841129238633,-0.000746829865255046,0.0464571003434843,0.0580540604662048,0.0814981710864094,0.0835081621465111,0.12318700203834,0.0844020902715276,0.0782617183655843,0.0289759540458364,0.0335342370672935,0.0551558784828973,0.0696700482501506,-0.037474950701156],"text":["PC1: -0.0125979542 PC2: 0.0728779392 Pop: NFA-SHIC paste(River, \"-\", ID): Upper North Fork American River - RAP-345","PC1: -0.0264341335 PC2: 0.0779841129 Pop: NFA-SHIC paste(River, \"-\", ID): Upper North Fork American River - RAP848","PC1: -0.1021953800 PC2: -0.0007468299 Pop: NFA-SHIC paste(River, \"-\", ID): Upper North Fork American River - RAP850","PC1: -0.0081094128 PC2: 0.0464571003 Pop: NFA-SHIC paste(River, \"-\", ID): Upper North Fork American River - RAP845","PC1: -0.0801600499 PC2: 0.0580540605 Pop: NFA-SHIC paste(River, \"-\", ID): Upper North Fork American River - RAP851","PC1: -0.0513362499 PC2: 0.0814981711 Pop: NFA-SHIC paste(River, \"-\", ID): Upper North Fork American River - RAP849","PC1: -0.0500368212 PC2: 0.0835081621 Pop: NFA-SHIC paste(River, \"-\", ID): Upper North Fork American River - RAP842","PC1: -0.0199268009 PC2: 0.1231870020 Pop: NFA-SHIC paste(River, \"-\", ID): Upper North Fork American River - RAP853","PC1: -0.0083746667 PC2: 0.0844020903 Pop: NFA-SHIC paste(River, \"-\", ID): Upper North Fork American River - RAP854","PC1: -0.0247535277 PC2: 0.0782617184 Pop: NFA-SHIC paste(River, \"-\", ID): Upper North Fork American River - RAP847","PC1: -0.0975416074 PC2: 0.0289759540 Pop: NFA-SHIC paste(River, \"-\", ID): Upper North Fork American River - RAP844","PC1: -0.0625280621 PC2: 0.0335342371 Pop: NFA-SHIC paste(River, \"-\", ID): Upper North Fork American River - RAP843","PC1: -0.0342258699 PC2: 0.0551558785 Pop: NFA-SHIC paste(River, \"-\", ID): Upper North Fork American River - RAP855","PC1: -0.0095905485 PC2: 0.0696700483 Pop: NFA-SHIC paste(River, \"-\", ID): Upper North Fork American River - RAP846","PC1: -0.0811658758 PC2: -0.0374749507 Pop: NFA-SHIC paste(River, \"-\", ID): Upper North Fork American River - RAP852"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(187,223,39,1)","opacity":0.8,"size":15.1181102362205,"symbol":"triangle-up","line":{"width":1.88976377952756,"color":"rgba(187,223,39,1)"}},"hoveron":"points","name":"NFA-SHIC","legendgroup":"NFA-SHIC","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0569008275245377,0.0895661689888194,0.035553735713514,0.0914159543332869,0.0602933869781064,0.0239665073493169,0.089247638569011,0.0706883980868079],"y":[-0.0567002803084341,0.0278609885853701,0.0675334260647338,0.0184773348670486,-0.0202782467636327,-0.110300426522202,-0.000898801198677274,-0.0504746818601806],"text":["PC1: 0.0569008275 PC2: -0.0567002803 Pop: NFA-SLAR paste(River, \"-\", ID): Upper North Fork American River - RAP824","PC1: 0.0895661690 PC2: 0.0278609886 Pop: NFA-SLAR paste(River, \"-\", ID): Upper North Fork American River - RAP823","PC1: 0.0355537357 PC2: 0.0675334261 Pop: NFA-SLAR paste(River, \"-\", ID): Upper North Fork American River - RAP825","PC1: 0.0914159543 PC2: 0.0184773349 Pop: NFA-SLAR paste(River, \"-\", ID): Upper North Fork American River - RAP826","PC1: 0.0602933870 PC2: -0.0202782468 Pop: NFA-SLAR paste(River, \"-\", ID): Upper North Fork American River - RAP821","PC1: 0.0239665073 PC2: -0.1103004265 Pop: NFA-SLAR paste(River, \"-\", ID): Upper North Fork American River - RAP828","PC1: 0.0892476386 PC2: -0.0008988012 Pop: NFA-SLAR paste(River, \"-\", ID): Upper North Fork American River - RAP822","PC1: 0.0706883981 PC2: -0.0504746819 Pop: NFA-SLAR paste(River, \"-\", ID): Upper North Fork American River - RAP827"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(253,231,37,1)","opacity":0.8,"size":15.1181102362205,"symbol":"triangle-up","line":{"width":1.88976377952756,"color":"rgba(253,231,37,1)"}},"hoveron":"points","name":"NFA-SLAR","legendgroup":"NFA-SLAR","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null}],"layout":{"margin":{"t":45.0150032615786,"r":7.30593607305936,"b":41.4350945857795,"l":48.9497716894977},"plot_bgcolor":"rgba(255,255,255,1)","paper_bgcolor":"rgba(255,255,255,1)","font":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187},"title":"North Fork American: PC1 (1.59%) / PC2 (1.5%)","titlefont":{"color":"rgba(0,0,0,1)","family":"","size":17.5342465753425},"xaxis":{"domain":[0,1],"type":"linear","autorange":false,"range":[-0.401342514284784,0.12609889840959],"tickmode":"array","ticktext":["-0.4","-0.3","-0.2","-0.1","0.0","0.1"],"tickvals":[-0.4,-0.3,-0.2,-0.1,0,0.1],"categoryorder":"array","categoryarray":["-0.4","-0.3","-0.2","-0.1","0.0","0.1"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":3.65296803652968,"tickwidth":0.66417600664176,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":11.689497716895},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.66417600664176,"zeroline":false,"anchor":"y","title":"PC1","titlefont":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187},"hoverformat":".2f"},"yaxis":{"domain":[0,1],"type":"linear","autorange":false,"range":[-0.550143824744964,0.163660161046586],"tickmode":"array","ticktext":["-0.4","-0.2","0.0"],"tickvals":[-0.4,-0.2,0],"categoryorder":"array","categoryarray":["-0.4","-0.2","0.0"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":3.65296803652968,"tickwidth":0.66417600664176,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":11.689497716895},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.66417600664176,"zeroline":false,"anchor":"x","title":"PC2","titlefont":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187},"hoverformat":".2f"},"shapes":[{"type":"rect","fillcolor":"transparent","line":{"color":"rgba(51,51,51,1)","width":0.66417600664176,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0,"x1":1,"y0":0,"y1":1}],"showlegend":true,"legend":{"bgcolor":"rgba(255,255,255,1)","bordercolor":"transparent","borderwidth":1.88976377952756,"font":{"color":"rgba(0,0,0,1)","family":"","size":11.689497716895},"y":0.938132733408324},"annotations":[{"text":"Pop","x":1.02,"y":1,"showarrow":false,"ax":0,"ay":0,"font":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187},"xref":"paper","yref":"paper","textangle":-0,"xanchor":"left","yanchor":"bottom","legendTitle":true}],"hovermode":"closest","barmode":"relative"},"config":{"doubleClick":"reset","modeBarButtonsToAdd":[{"name":"Collaborate","icon":{"width":1000,"ascent":500,"descent":-50,"path":"M487 375c7-10 9-23 5-36l-79-259c-3-12-11-23-22-31-11-8-22-12-35-12l-263 0c-15 0-29 5-43 15-13 10-23 23-28 37-5 13-5 25-1 37 0 0 0 3 1 7 1 5 1 8 1 11 0 2 0 4-1 6 0 3-1 5-1 6 1 2 2 4 3 6 1 2 2 4 4 6 2 3 4 5 5 7 5 7 9 16 13 26 4 10 7 19 9 26 0 2 0 5 0 9-1 4-1 6 0 8 0 2 2 5 4 8 3 3 5 5 5 7 4 6 8 15 12 26 4 11 7 19 7 26 1 1 0 4 0 9-1 4-1 7 0 8 1 2 3 5 6 8 4 4 6 6 6 7 4 5 8 13 13 24 4 11 7 20 7 28 1 1 0 4 0 7-1 3-1 6-1 7 0 2 1 4 3 6 1 1 3 4 5 6 2 3 3 5 5 6 1 2 3 5 4 9 2 3 3 7 5 10 1 3 2 6 4 10 2 4 4 7 6 9 2 3 4 5 7 7 3 2 7 3 11 3 3 0 8 0 13-1l0-1c7 2 12 2 14 2l218 0c14 0 25-5 32-16 8-10 10-23 6-37l-79-259c-7-22-13-37-20-43-7-7-19-10-37-10l-248 0c-5 0-9-2-11-5-2-3-2-7 0-12 4-13 18-20 41-20l264 0c5 0 10 2 16 5 5 3 8 6 10 11l85 282c2 5 2 10 2 17 7-3 13-7 17-13z m-304 0c-1-3-1-5 0-7 1-1 3-2 6-2l174 0c2 0 4 1 7 2 2 2 4 4 5 7l6 18c0 3 0 5-1 7-1 1-3 2-6 2l-173 0c-3 0-5-1-8-2-2-2-4-4-4-7z m-24-73c-1-3-1-5 0-7 2-2 3-2 6-2l174 0c2 0 5 0 7 2 3 2 4 4 5 7l6 18c1 2 0 5-1 6-1 2-3 3-5 3l-174 0c-3 0-5-1-7-3-3-1-4-4-5-6z"},"click":"function(gd) { \n // is this being viewed in RStudio?\n if (location.search == '?viewer_pane=1') {\n alert('To learn about plotly for collaboration, visit:\\n https://cpsievert.github.io/plotly_book/plot-ly-for-collaboration.html');\n } else {\n window.open('https://cpsievert.github.io/plotly_book/plot-ly-for-collaboration.html', '_blank');\n }\n }"}],"cloud":false},"source":"A","attrs":{"16b3596f4f6f":{"x":{},"y":{},"colour":{},"label":{},"type":"scatter"}},"cur_data":"16b3596f4f6f","visdat":{"16b3596f4f6f":["function (y) ","x"]},"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.2,"selected":{"opacity":1}},"base_url":"https://plot.ly"},"evals":["config.modeBarButtonsToAdd.0.click"],"jsHooks":{"render":[{"code":"function(el, x) { var ctConfig = crosstalk.var('plotlyCrosstalkOpts').set({\"on\":\"plotly_click\",\"persistent\":false,\"dynamic\":false,\"selectize\":false,\"opacityDim\":0.2,\"selected\":{\"opacity\":1}}); }","data":null}]}}</script>

---

### PCA: Impaired (hydropeaking) Watershed
Strong structure, greater divergence across subpops. (n=8,854 SNPs)

<div id="16b33b3d88a0" style="width:792px;height:504px;" class="plotly html-widget"></div>
<script type="application/json" data-for="16b33b3d88a0">{"x":{"data":[{"x":[0.14504115141426,0.150497264336029,0.0719646223012949,0.102195704018144,0.0831084506827355,0.131411086441978],"y":[0.0541533464351796,0.091399076021801,0.039581800162054,0.0240363722861573,-0.00677949123128583,0.0747909712489848],"text":["PC1: 0.14504115 PC2: 0.054153346 Pop: MFA-AMEC paste(River, \"-\", ID): Lower Middle Fork American River - RAP631","PC1: 0.15049726 PC2: 0.091399076 Pop: MFA-AMEC paste(River, \"-\", ID): Lower Middle Fork American River - RAP635","PC1: 0.07196462 PC2: 0.039581800 Pop: MFA-AMEC paste(River, \"-\", ID): Lower Middle Fork American River - RAP622","PC1: 0.10219570 PC2: 0.024036372 Pop: MFA-AMEC paste(River, \"-\", ID): Lower Middle Fork American River - RAP619","PC1: 0.08310845 PC2: -0.006779491 Pop: MFA-AMEC paste(River, \"-\", ID): Lower Middle Fork American River - RAP624","PC1: 0.13141109 PC2: 0.074790971 Pop: MFA-AMEC paste(River, \"-\", ID): Lower Middle Fork American River - RAP634"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(68,1,84,1)","opacity":0.8,"size":15.1181102362205,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(68,1,84,1)"}},"hoveron":"points","name":"MFA-AMEC","legendgroup":"MFA-AMEC","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0978800273482809,0.0806516910458526,0.0912216299167885,0.102786758476786,0.0905945449291509,0.0631931381130749],"y":[-0.160617784332414,-0.169097529486233,-0.164925567059077,-0.16669636523117,-0.129222984583054,-0.146131469203348],"text":["PC1: 0.09788003 PC2: -0.160617784 Pop: MFA-GASC paste(River, \"-\", ID): Lower Middle Fork American River - RAP796","PC1: 0.08065169 PC2: -0.169097529 Pop: MFA-GASC paste(River, \"-\", ID): Lower Middle Fork American River - RAP793","PC1: 0.09122163 PC2: -0.164925567 Pop: MFA-GASC paste(River, \"-\", ID): Lower Middle Fork American River - RAP792","PC1: 0.10278676 PC2: -0.166696365 Pop: MFA-GASC paste(River, \"-\", ID): Lower Middle Fork American River - RAP791","PC1: 0.09059454 PC2: -0.129222985 Pop: MFA-GASC paste(River, \"-\", ID): Lower Middle Fork American River - RAP795","PC1: 0.06319314 PC2: -0.146131469 Pop: MFA-GASC paste(River, \"-\", ID): Lower Middle Fork American River - RAP794"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(70,51,126,1)","opacity":0.8,"size":15.1181102362205,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(70,51,126,1)"}},"hoveron":"points","name":"MFA-GASC","legendgroup":"MFA-GASC","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.0912210380412826,0.0717850882233689,0.0787470277788509,0.0993616497392642,0.0889078716301395,0.104145021926913,0.089810737828984,0.104512083297463,0.0741250957280377],"y":[-0.250889247392036,-0.265539763867277,-0.17516088294698,-0.208468348016748,-0.251581207321454,-0.222044871659963,-0.22706683111484,-0.211556713146516,-0.246130266492145],"text":["PC1: 0.09122104 PC2: -0.250889247 Pop: MFA-TODC paste(River, \"-\", ID): Lower Middle Fork American River - AAA822","PC1: 0.07178509 PC2: -0.265539764 Pop: MFA-TODC paste(River, \"-\", ID): Lower Middle Fork American River - AAA823","PC1: 0.07874703 PC2: -0.175160883 Pop: MFA-TODC paste(River, \"-\", ID): Lower Middle Fork American River - RAP782","PC1: 0.09936165 PC2: -0.208468348 Pop: MFA-TODC paste(River, \"-\", ID): Lower Middle Fork American River - RAP790","PC1: 0.08890787 PC2: -0.251581207 Pop: MFA-TODC paste(River, \"-\", ID): Lower Middle Fork American River - RAP788","PC1: 0.10414502 PC2: -0.222044872 Pop: MFA-TODC paste(River, \"-\", ID): Lower Middle Fork American River - RAP787","PC1: 0.08981074 PC2: -0.227066831 Pop: MFA-TODC paste(River, \"-\", ID): Lower Middle Fork American River - RAP786","PC1: 0.10451208 PC2: -0.211556713 Pop: MFA-TODC paste(River, \"-\", ID): Lower Middle Fork American River - RAP785","PC1: 0.07412510 PC2: -0.246130266 Pop: MFA-TODC paste(River, \"-\", ID): Lower Middle Fork American River - RAP789"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(54,92,141,1)","opacity":0.8,"size":15.1181102362205,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(54,92,141,1)"}},"hoveron":"points","name":"MFA-TODC","legendgroup":"MFA-TODC","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[-0.0820447777021778],"y":[0.0371361568344799],"text":"PC1: -0.08204478 PC2: 0.037136157 Pop: MFA-US-R paste(River, \"-\", ID): Upper Middle Fork American River - RAP681","type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(39,127,142,1)","opacity":0.8,"size":15.1181102362205,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(39,127,142,1)"}},"hoveron":"points","name":"MFA-US-R","legendgroup":"MFA-US-R","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[-0.0924678098713703,-0.0995625577495196,-0.0917310927737497,-0.0952449404946744,-0.0878621588995407,-0.0897720194374228,-0.0813497029774799,-0.0929787912715225,-0.089588180257339,-0.0880270673475764,-0.103867099594975,-0.0840769862574564,-0.0908162733607976,-0.0924214032540484,-0.0864869436539456,-0.0849569508700863,-0.0797401886518857,-0.0809672280543497],"y":[0.0233674607632504,0.0289253255799576,0.02962759442119,0.0200508795678929,0.0300859596052557,0.0252658725405613,0.0651339471648097,0.0350933441091481,0.0435767184746834,0.0128941460421609,0.0523737874522182,0.0393027785930978,0.0484388549878637,0.0311969859644067,0.0173470115013924,0.0364674400014737,0.022849508061028,0.0241191553673841],"text":["PC1: -0.09246781 PC2: 0.023367461 Pop: NFMFA-SC paste(River, \"-\", ID): North Fork Middle Fork American River - RAP706","PC1: -0.09956256 PC2: 0.028925326 Pop: NFMFA-SC paste(River, \"-\", ID): North Fork Middle Fork American River - RAP707","PC1: -0.09173109 PC2: 0.029627594 Pop: NFMFA-SC paste(River, \"-\", ID): North Fork Middle Fork American River - RAP708","PC1: -0.09524494 PC2: 0.020050880 Pop: NFMFA-SC paste(River, \"-\", ID): North Fork Middle Fork American River - RAP718","PC1: -0.08786216 PC2: 0.030085960 Pop: NFMFA-SC paste(River, \"-\", ID): North Fork Middle Fork American River - RAP717","PC1: -0.08977202 PC2: 0.025265873 Pop: NFMFA-SC paste(River, \"-\", ID): North Fork Middle Fork American River - RAP710","PC1: -0.08134970 PC2: 0.065133947 Pop: NFMFA-SC paste(River, \"-\", ID): North Fork Middle Fork American River - RAP721","PC1: -0.09297879 PC2: 0.035093344 Pop: NFMFA-SC paste(River, \"-\", ID): North Fork Middle Fork American River - RAP712","PC1: -0.08958818 PC2: 0.043576718 Pop: NFMFA-SC paste(River, \"-\", ID): North Fork Middle Fork American River - RAP720","PC1: -0.08802707 PC2: 0.012894146 Pop: NFMFA-SC paste(River, \"-\", ID): North Fork Middle Fork American River - RAP722","PC1: -0.10386710 PC2: 0.052373787 Pop: NFMFA-SC paste(River, \"-\", ID): North Fork Middle Fork American River - RAP715","PC1: -0.08407699 PC2: 0.039302779 Pop: NFMFA-SC paste(River, \"-\", ID): North Fork Middle Fork American River - RAP716","PC1: -0.09081627 PC2: 0.048438855 Pop: NFMFA-SC paste(River, \"-\", ID): North Fork Middle Fork American River - RAP711","PC1: -0.09242140 PC2: 0.031196986 Pop: NFMFA-SC paste(River, \"-\", ID): North Fork Middle Fork American River - RAP723","PC1: -0.08648694 PC2: 0.017347012 Pop: NFMFA-SC paste(River, \"-\", ID): North Fork Middle Fork American River - RAP719","PC1: -0.08495695 PC2: 0.036467440 Pop: NFMFA-SC paste(River, \"-\", ID): North Fork Middle Fork American River - RAP709","PC1: -0.07974019 PC2: 0.022849508 Pop: NFMFA-SC paste(River, \"-\", ID): North Fork Middle Fork American River - RAP714","PC1: -0.08096723 PC2: 0.024119155 Pop: NFMFA-SC paste(River, \"-\", ID): North Fork Middle Fork American River - RAP713"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(31,161,135,1)","opacity":0.8,"size":15.1181102362205,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(31,161,135,1)"}},"hoveron":"points","name":"NFMFA-SC","legendgroup":"NFMFA-SC","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[-0.0741166923898024,-0.0827654983772806,-0.0895118806620026,-0.0846096095110012,-0.0946068361245097,-0.0889379935755915,-0.089714294590205,-0.0969634081472021],"y":[0.0303857808436825,0.047332730385101,0.0348656079108289,0.0272480430172302,0.0380339473695806,0.0395717720182303,0.0197648257035332,0.00429005368144895],"text":["PC1: -0.07411669 PC2: 0.030385781 Pop: RUB-LC-US paste(River, \"-\", ID): Rubicon River - AAA831","PC1: -0.08276550 PC2: 0.047332730 Pop: RUB-LC-US paste(River, \"-\", ID): Rubicon River - AAA811","PC1: -0.08951188 PC2: 0.034865608 Pop: RUB-LC-US paste(River, \"-\", ID): Rubicon River - AAA833","PC1: -0.08460961 PC2: 0.027248043 Pop: RUB-LC-US paste(River, \"-\", ID): Rubicon River - AAA813","PC1: -0.09460684 PC2: 0.038033947 Pop: RUB-LC-US paste(River, \"-\", ID): Rubicon River - AAA812","PC1: -0.08893799 PC2: 0.039571772 Pop: RUB-LC-US paste(River, \"-\", ID): Rubicon River - AAA834","PC1: -0.08971429 PC2: 0.019764826 Pop: RUB-LC-US paste(River, \"-\", ID): Rubicon River - AAA832","PC1: -0.09696341 PC2: 0.004290054 Pop: RUB-LC-US paste(River, \"-\", ID): Rubicon River - AAA809"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(74,193,109,1)","opacity":0.8,"size":15.1181102362205,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(74,193,109,1)"}},"hoveron":"points","name":"RUB-LC-US","legendgroup":"RUB-LC-US","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[-0.10743866855839,-0.0997353872285285,-0.102263878251029,-0.104430653826448,-0.0989417441320028,-0.0995105627003511,-0.0959959580268752,-0.105842130000028,-0.103477825296823,-0.101480144859789,-0.109250194420062],"y":[0.0442667557461279,0.0591072189276278,0.065337172199868,0.0544183963443869,0.044175425815533,0.0736572645217495,0.0457649036626831,0.0418744977737266,0.0483274806667124,0.0548742098446312,0.0658122836353247],"text":["PC1: -0.10743867 PC2: 0.044266756 Pop: RUB-USPH paste(River, \"-\", ID): Rubicon River - RAP724","PC1: -0.09973539 PC2: 0.059107219 Pop: RUB-USPH paste(River, \"-\", ID): Rubicon River - RAP728","PC1: -0.10226388 PC2: 0.065337172 Pop: RUB-USPH paste(River, \"-\", ID): Rubicon River - RAP734","PC1: -0.10443065 PC2: 0.054418396 Pop: RUB-USPH paste(River, \"-\", ID): Rubicon River - RAP732","PC1: -0.09894174 PC2: 0.044175426 Pop: RUB-USPH paste(River, \"-\", ID): Rubicon River - RAP727","PC1: -0.09951056 PC2: 0.073657265 Pop: RUB-USPH paste(River, \"-\", ID): Rubicon River - RAP733","PC1: -0.09599596 PC2: 0.045764904 Pop: RUB-USPH paste(River, \"-\", ID): Rubicon River - RAP725","PC1: -0.10584213 PC2: 0.041874498 Pop: RUB-USPH paste(River, \"-\", ID): Rubicon River - RAP726","PC1: -0.10347783 PC2: 0.048327481 Pop: RUB-USPH paste(River, \"-\", ID): Rubicon River - RAP730","PC1: -0.10148014 PC2: 0.054874210 Pop: RUB-USPH paste(River, \"-\", ID): Rubicon River - RAP729","PC1: -0.10925019 PC2: 0.065812284 Pop: RUB-USPH paste(River, \"-\", ID): Rubicon River - RAP731"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(159,218,58,1)","opacity":0.8,"size":15.1181102362205,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(159,218,58,1)"}},"hoveron":"points","name":"RUB-USPH","legendgroup":"RUB-USPH","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[0.258628591959102,0.264722486064792,0.297453336651293,0.277306491695773,0.301555787109974,0.271650867587637],"y":[0.238599036163449,0.191542926220907,0.230914269909033,0.23108401155888,0.239652877173523,0.181762820166447],"text":["PC1: 0.25862859 PC2: 0.238599036 Pop: SFA-CAMI paste(River, \"-\", ID): Silver Creek - RAP776","PC1: 0.26472249 PC2: 0.191542926 Pop: SFA-CAMI paste(River, \"-\", ID): Silver Creek - RAP781","PC1: 0.29745334 PC2: 0.230914270 Pop: SFA-CAMI paste(River, \"-\", ID): Silver Creek - RAP779","PC1: 0.27730649 PC2: 0.231084012 Pop: SFA-CAMI paste(River, \"-\", ID): Silver Creek - RAP778","PC1: 0.30155579 PC2: 0.239652877 Pop: SFA-CAMI paste(River, \"-\", ID): Silver Creek - RAP777","PC1: 0.27165087 PC2: 0.181762820 Pop: SFA-CAMI paste(River, \"-\", ID): Silver Creek - RAP780"],"type":"scatter","mode":"markers","marker":{"autocolorscale":false,"color":"rgba(253,231,37,1)","opacity":0.8,"size":15.1181102362205,"symbol":"circle","line":{"width":1.88976377952756,"color":"rgba(253,231,37,1)"}},"hoveron":"points","name":"SFA-CAMI","legendgroup":"SFA-CAMI","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null}],"layout":{"margin":{"t":45.0150032615786,"r":7.30593607305936,"b":41.4350945857795,"l":48.9497716894977},"plot_bgcolor":"rgba(255,255,255,1)","paper_bgcolor":"rgba(255,255,255,1)","font":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187},"title":"Middle Fork American: PC1 (6.14%) / PC2 (3.15%)","titlefont":{"color":"rgba(0,0,0,1)","family":"","size":17.5342465753425},"xaxis":{"domain":[0,1],"type":"linear","autorange":false,"range":[-0.129790493496564,0.322096086186476],"tickmode":"array","ticktext":["-0.1","0.0","0.1","0.2","0.3"],"tickvals":[-0.1,0,0.1,0.2,0.3],"categoryorder":"array","categoryarray":["-0.1","0.0","0.1","0.2","0.3"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":3.65296803652968,"tickwidth":0.66417600664176,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":11.689497716895},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.66417600664176,"zeroline":false,"anchor":"y","title":"PC1","titlefont":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187},"hoverformat":".2f"},"yaxis":{"domain":[0,1],"type":"linear","autorange":false,"range":[-0.290799395919317,0.264912509225563],"tickmode":"array","ticktext":["-0.2","-0.1","0.0","0.1","0.2"],"tickvals":[-0.2,-0.1,0,0.1,0.2],"categoryorder":"array","categoryarray":["-0.2","-0.1","0.0","0.1","0.2"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":3.65296803652968,"tickwidth":0.66417600664176,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":11.689497716895},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.66417600664176,"zeroline":false,"anchor":"x","title":"PC2","titlefont":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187},"hoverformat":".2f"},"shapes":[{"type":"rect","fillcolor":"transparent","line":{"color":"rgba(51,51,51,1)","width":0.66417600664176,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0,"x1":1,"y0":0,"y1":1}],"showlegend":true,"legend":{"bgcolor":"rgba(255,255,255,1)","bordercolor":"transparent","borderwidth":1.88976377952756,"font":{"color":"rgba(0,0,0,1)","family":"","size":11.689497716895},"y":0.938132733408324},"annotations":[{"text":"Pop","x":1.02,"y":1,"showarrow":false,"ax":0,"ay":0,"font":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187},"xref":"paper","yref":"paper","textangle":-0,"xanchor":"left","yanchor":"bottom","legendTitle":true}],"hovermode":"closest","barmode":"relative"},"config":{"doubleClick":"reset","modeBarButtonsToAdd":[{"name":"Collaborate","icon":{"width":1000,"ascent":500,"descent":-50,"path":"M487 375c7-10 9-23 5-36l-79-259c-3-12-11-23-22-31-11-8-22-12-35-12l-263 0c-15 0-29 5-43 15-13 10-23 23-28 37-5 13-5 25-1 37 0 0 0 3 1 7 1 5 1 8 1 11 0 2 0 4-1 6 0 3-1 5-1 6 1 2 2 4 3 6 1 2 2 4 4 6 2 3 4 5 5 7 5 7 9 16 13 26 4 10 7 19 9 26 0 2 0 5 0 9-1 4-1 6 0 8 0 2 2 5 4 8 3 3 5 5 5 7 4 6 8 15 12 26 4 11 7 19 7 26 1 1 0 4 0 9-1 4-1 7 0 8 1 2 3 5 6 8 4 4 6 6 6 7 4 5 8 13 13 24 4 11 7 20 7 28 1 1 0 4 0 7-1 3-1 6-1 7 0 2 1 4 3 6 1 1 3 4 5 6 2 3 3 5 5 6 1 2 3 5 4 9 2 3 3 7 5 10 1 3 2 6 4 10 2 4 4 7 6 9 2 3 4 5 7 7 3 2 7 3 11 3 3 0 8 0 13-1l0-1c7 2 12 2 14 2l218 0c14 0 25-5 32-16 8-10 10-23 6-37l-79-259c-7-22-13-37-20-43-7-7-19-10-37-10l-248 0c-5 0-9-2-11-5-2-3-2-7 0-12 4-13 18-20 41-20l264 0c5 0 10 2 16 5 5 3 8 6 10 11l85 282c2 5 2 10 2 17 7-3 13-7 17-13z m-304 0c-1-3-1-5 0-7 1-1 3-2 6-2l174 0c2 0 4 1 7 2 2 2 4 4 5 7l6 18c0 3 0 5-1 7-1 1-3 2-6 2l-173 0c-3 0-5-1-8-2-2-2-4-4-4-7z m-24-73c-1-3-1-5 0-7 2-2 3-2 6-2l174 0c2 0 5 0 7 2 3 2 4 4 5 7l6 18c1 2 0 5-1 6-1 2-3 3-5 3l-174 0c-3 0-5-1-7-3-3-1-4-4-5-6z"},"click":"function(gd) { \n // is this being viewed in RStudio?\n if (location.search == '?viewer_pane=1') {\n alert('To learn about plotly for collaboration, visit:\\n https://cpsievert.github.io/plotly_book/plot-ly-for-collaboration.html');\n } else {\n window.open('https://cpsievert.github.io/plotly_book/plot-ly-for-collaboration.html', '_blank');\n }\n }"}],"cloud":false},"source":"A","attrs":{"16b35f5ab188":{"x":{},"y":{},"colour":{},"label":{},"type":"scatter"}},"cur_data":"16b35f5ab188","visdat":{"16b35f5ab188":["function (y) ","x"]},"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.2,"selected":{"opacity":1}},"base_url":"https://plot.ly"},"evals":["config.modeBarButtonsToAdd.0.click"],"jsHooks":{"render":[{"code":"function(el, x) { var ctConfig = crosstalk.var('plotlyCrosstalkOpts').set({\"on\":\"plotly_click\",\"persistent\":false,\"dynamic\":false,\"selectize\":false,\"opacityDim\":0.2,\"selected\":{\"opacity\":1}}); }","data":null}]}}</script>

---
class: inverse, middle

## FST (Wright 1950):

### a measure of population differentiation due to genetic structure

- ### Scaled 0=(panmixis) to 1=(completely different)

---
background-image: url(images/fst_vs_meandist_regunreg.png)
background-size: 910px
background-position: 55% 15%
class: left, top

## FST vs. River Distance

---
background-image: url(images/fst_vs_streamorder.png)
background-size: 910px
background-position: 55% 15%
class: left, top

## FST vs. Stream Order

---
class: center, middle, inverse

# Genomic Variation

---
background-image: url(images/theta_boxplot_signif_annotated.png)
background-size: 850px
background-position: 65% 15%
class: center, bottom

### Loss of genetic diversity in regulated systems >> unregulated

---
class: inverse

## Are metrics of flow strongest factor in genomic patterns?

### Can we integrate genomics with environmental flow management?

---
background-image: url(images/relinf_brt_simple.png)
background-size: 900px
background-position: 55% 15%
class: left, bottom

## Boosted Regression Tree Models
---
class: left, top, inverse

# Summary:

.pull-left[
<img src="images/gray_fylf.png" height="220" width="300">
]

### Flow alteration is having a direct impact on a hydrologically sensitive species at a genomic level

### The current population trajectory is highly concerning in Sierras

### Flow management and listing distinct population segments may afford some protection...

### RAPTURE/RADSeq is a powerful & effective method

---
background-image: url(images/nfy_recession_bar.png)
background-size: cover
class: inverse

# Thank you!

.footnote[

### *Slides* : ryanpeek.github.io/presentations

]
